VC Codes

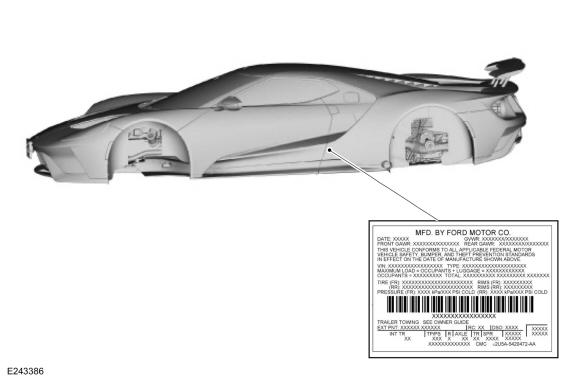

VC Label Locator
The VC label contains the manufacturer name, the month and year of manufacture, the certification statement and the VIN. It also includes GVW and tire information. If a vehicle requires replacement of the VC label and is 4 years old or less, an authorized dealer must submit the VIN to their respective regional office. The regional office will submit a web form to the assembly plant for the replacement label. Once the label has been printed, a representative from the regional office will deliver the label to the dealer and witness installation on the vehicle. If a vehicle is more than 4 years old and requires a replacement label, the dealer must submit a request to the Department of Motor Vehicles.
| Item | Description |
|---|---|
| 1 | Exterior paint code |
| 2 | Region code |
| 3 | Domestic special order code |
| 4 | Interior trim code |
| 5 | Tape/paint stripe code |
| 6 | Radio code |
| 7 | Axle code |
| 8 | Transmission code |
| 9 | Spring code |
| 10 | Powertrain calibration information |
Paint Code
Paint codes are listed as a 2-part code. The first set of paint code numbers/letters indicate the vehicle primary body color. The second set of letters/numbers (if applicable) indicate a 2-tone or accent body color. All paint codes are a base coat/clear coat finish.
- A5 - Matte Shadow Black
- A6 - Frozen White
- A7 - Liquid Gray (tri-coat)
- A8 - Liquid Blue (tri-coat)
- A9 - Liquid Red (tri-coat)
- BB - Custom Paint 1
- BC - Custom Paint 2
- G1 - Shadow Black
- H3 - Triple Yellow (tri-coat)
- UX - Ingot Silver Metallic
Interior Trim Codes
Interior trim codes are listed as a 2-part code. The first digit listed indicates the seat and fabric style. The second digit listed indicates the interior trim color.
Interior Trim Type
- 4 - Luxury leather #1
- L - Alcantara cloth #1
- P - Luxury leather #2
- Q - Cloth #1
- R - Luxury leather #3
- S - Luxury leather #4
- T - Alcantara cloth #3
Interior Trim Color
- H - Ebony
- P - White
- R - Blue
- S - Orange
Tape/Paint Stripe Codes
Paint stripe codes are as follows:
- 14P - Shadow Black overtop painted stripes
- 14V - Ingot Silver overtop painted stripes
- 14R - Alloy overtop painted stripes
- 14Q - Frozen White overtop painted stripes
- 14T - Lightning Blue overtop painted stripes
- 14U - Competition Orange overtop painted stripes
- 14S - Race Red overtop painted stripes
- 14W - Bespoke stripe (color 1)
- 14X - Bespoke stripe (color 2)
Radio Codes
The following lists available radio codes:
- R - Less radio with single tuner
- S - Less radio with dual tuner
- V - Radio with single tuner - AM/ FM 1
- W - Radio with dual tuner - AM/ FM 2
Transmission Codes
Available transmissions are as follows:
- F - 7-speed, dual clutch, automated article transmission
Spring Codes
Spring codes are listed as a 2-part code. The first set of characters identify the front springs. The second set of characters identify the rear springs.
Front Springs
- 5310 - Base part number
Rear Springs
- 5560 - Base part number
