Power Steering Pressure Sensor: Removal

  1. Remove the front fender splash shield. Refer to: Fender Splash Shield .
  2. Discharge the power steering system. Refer to: Power Steering System Pressure Discharge  .

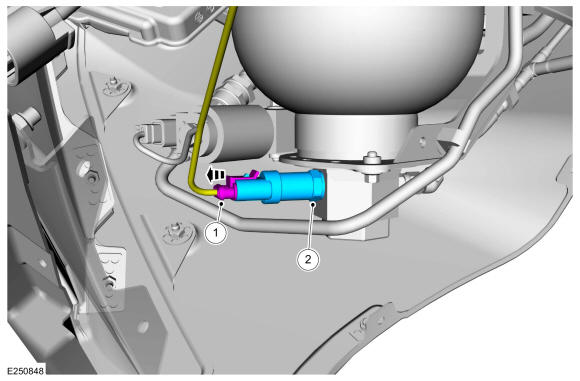

    1. Disconnect the power steering pressure sensor electrical connector.
    2. Remove the power steering pressure sensor.

      Torque: 168 lb.in (19 Nm)

GFD344303Courtesy of FORD MOTOR COMPANY
