Downshift Paddle Switch: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Remove the driver air bag. Refer to: Driver Airbag
.

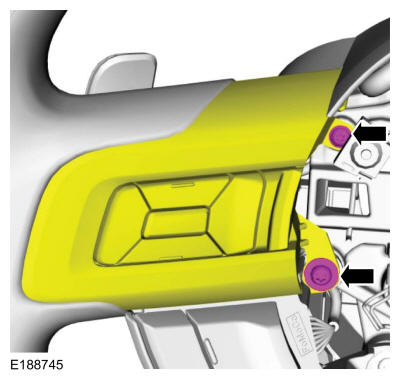

- 2.
Remove the screws and position the LH speed control switch to access the electrical connector.
 Courtesy of FORD MOTOR COMPANY
|

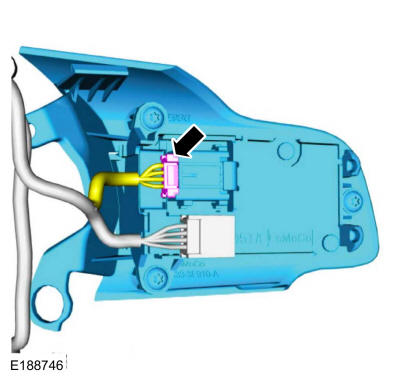

- 3.
Disconnect the LH speed control switch electrical connector and remove the switch.
 Courtesy of FORD MOTOR COMPANY
|

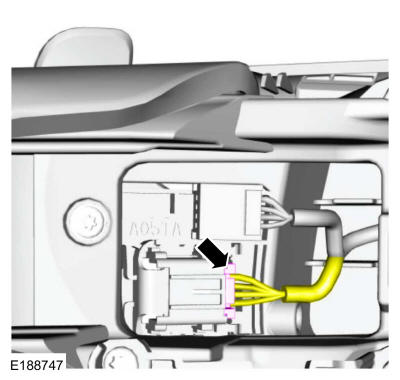

- 4.
Disconnect the downshift paddle switch electrical connector.
 Courtesy of FORD MOTOR COMPANY
|

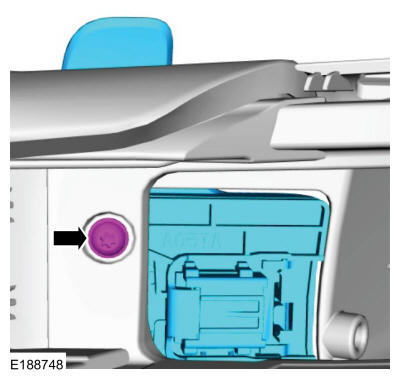

- 5.
Remove the screw and the downshift paddle switch.
 Courtesy of FORD MOTOR COMPANY
|
