Fuel Injection Pump Tappet Inspection

1.

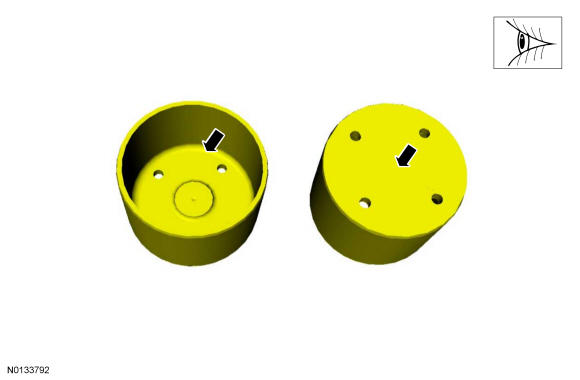

Inspect the fuel injection pump tappet for flat spots or scoring, especially in the indicated areas. Visual check.

Courtesy of FORD MOTOR COMPANY

2.

If any damage is found, inspect the fuel injection pump and the fuel injection pump tappet drive lobe. Install new components as necessary.
