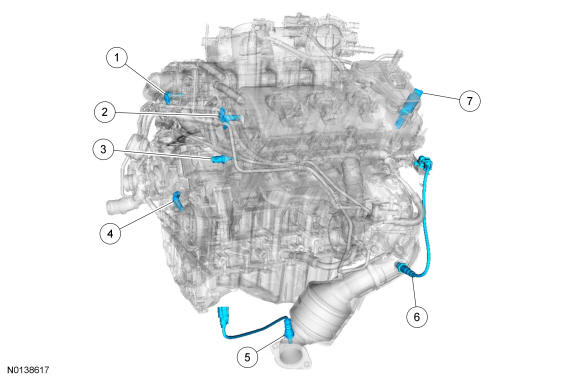

Rear Engine Sensor Locations - 3.5L GTDI

GFD83404Courtesy of FORD MOTOR COMPANY
Item Description Comments
1 LH CMP sensor -
2 RH CMP sensor -
3 CHT sensor -
4 CKP sensor -
5 RH CMS -
6 RH HO2S -
7 RH VCT oil control solenoid -
