Variable Camshaft Timing (VCT) Oil Control Solenoid - 3.5L GTDI: Notes

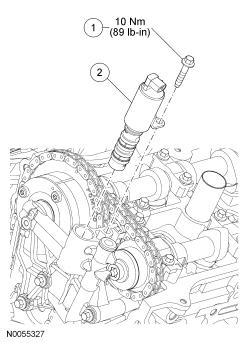

Fig 1: Variable Camshaft Timing Oil Control Solenoid With Torque Specifications
GFD83496Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 W500215 Variable Camshaft Timing (VCT) oil control solenoid bolt
2 6B297 VCT oil control solenoid
