Fuel Injection Pump: Notes

Material

Item	Specification
Motorcraft ® SAE 5W-30 Premium Synthetic Blend Motor Oil (US); Motorcraft ® SAE 5W-30 Super Premium Motor Oil (Canada) XO-5W30-QSP (US); CXO-5W30-LSP12 (Canada)	WSS-M2C946-A
Motorcraft ® Thread Sealant with PTFE TA-24-B	WSK-M2G350-A2

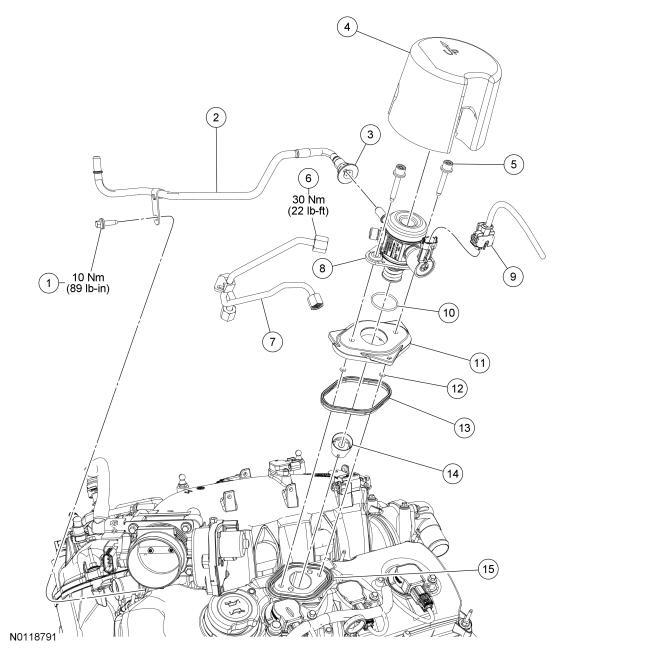

Fig 1: Exploded View Of Fuel Injection Pump With Torque Specifications

GFD83165

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	W503274	Fuel jumper tube bolt
2	9J280	Fuel jumper tube
3	-	Fuel jumper tube-to-fuel injection pump quick connect coupling (part of 9J280)
4	6N041	Fuel injection pump noise insulator shield
5	W714498	Fuel injection pump bolt (2 required)
6	-	High pressure fuel tube-to-fuel injection pump flare nut (part of 9J323)
7	9J323	High pressure fuel tube
8	9350	Fuel injection pump
9	14A464	Fuel injection pump electrical connector
10	9E853	Fuel injection pump O-ring seal (part of 9350)
11	9178	Fuel injection pump mounting plate (part of 9178)
12	9374	Fuel injection pump mounting plate O-ring seal (2 required) (part of 9178)
13	9417	Fuel injection pump mounting plate seal
14	9C587	Fuel injection pump tappet
15	-	Fuel injection pump mounting pedestal (part of 6049)
