Fuel Rail and Fuel Injector - Exploded View

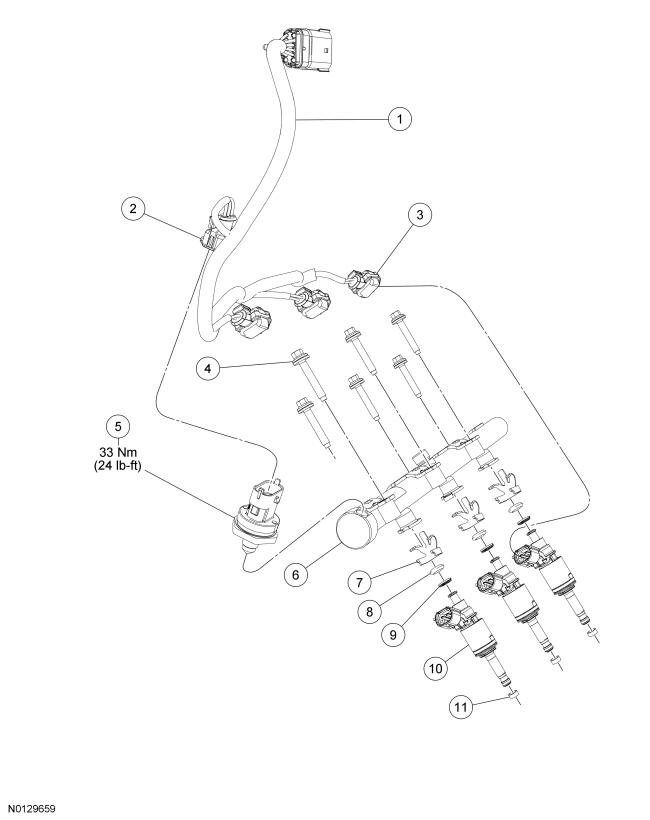

3.5L GTDI LH Fuel Rail and Fuel Injectors

Fig 1: Exploded View Of Fuel Rail and Fuel Injectors With Torque Specifications

GFD83162

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	9D930	LH fuel charge wire harness
2	-	Fuel Rail Pressure (FRP) sensor electrical connector (part of 9D930)
3	-	Fuel injector electrical connector (part of 9D930) (3 required)
4	W503279	Fuel rail bolt (6 required)
5	9F972	FRP sensor
6	9D280	LH fuel rail
7	9C995	Fuel injector clip (3 required)
8	-	Upper fuel injector O-ring seal (part of 9229) (3 required)
9	-	Fuel injector support disc (part of 9229) (3 required)
10	9F593	Fuel injector (3 required)
11	-	Lower fuel injector Teflon ® seal (part of 9229) (3 required)

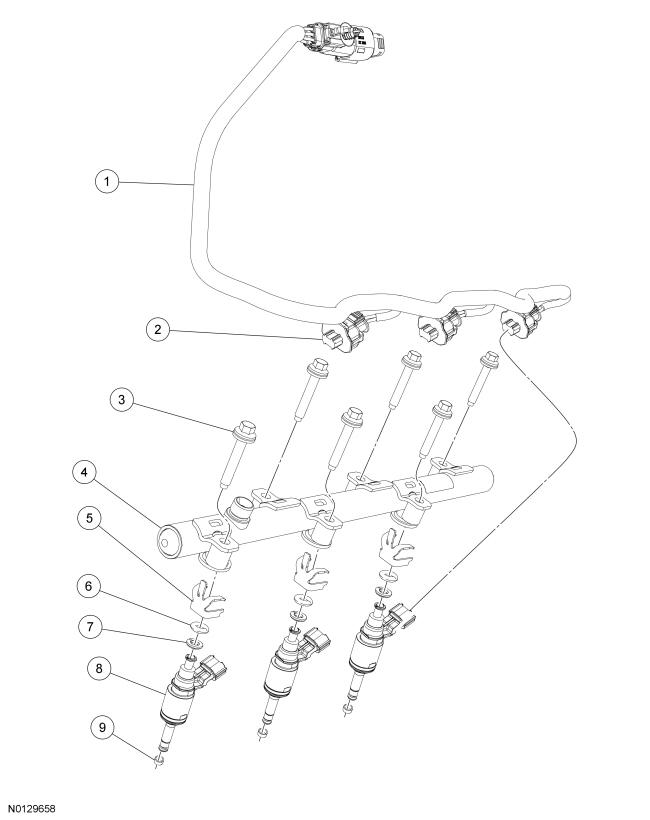

3.5L GTDI RH Fuel Rail and Fuel Injectors

GFD83163

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	9D930	RH fuel charge wire harness
2	-	Fuel injector electrical connector (part of 9D930) (part of 12B637) (3 required)
3	W503279	Fuel rail bolt (6 required)
4	9D280	RH fuel rail
5	9C995	Fuel injector clip (3 required)
6	-	Upper fuel injector O-ring seal (part of 9229) (3 required)
7	-	Fuel injector support disc (part of 9229) (3 required)
8	9F593	Fuel injector (3 required)
9	-	Lower fuel injector Teflon ® seal (part of 9229) (3 required)

1.

Refer to the procedures and/or exploded views in this article for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
