Steering Gear: Notes
Special Tool(s)
 Courtesy of FORD MOTOR COMPANY
|
Powertrain Lift 300-OTC1585AE or equivalent |
NOTE:
3.5L GTDI engine shown, 3.5L Ti-VCT, 3.7L Ti-VCT and 2.0L GTDI similar.
Courtesy of FORD MOTOR COMPANY

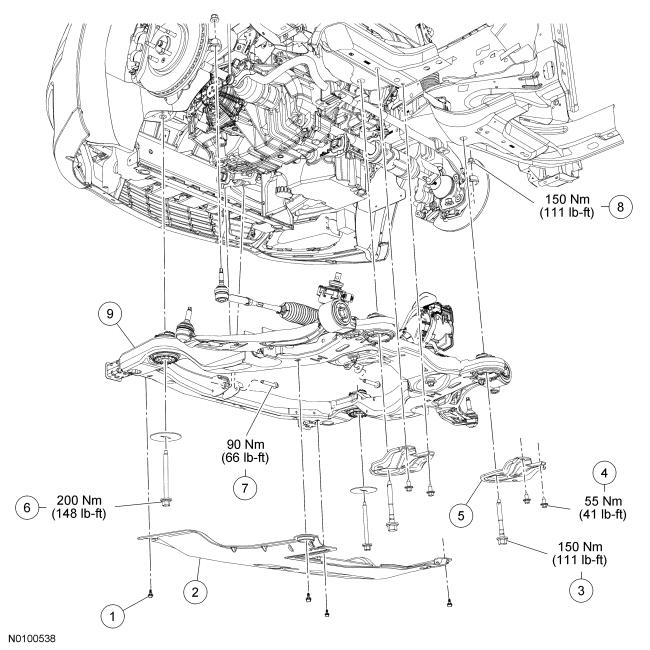

| Item |
Part Number |
Description |
| 1 |
- |
Underbody shield retainer (4 required) |
| 2 |
10494 |
Underbody shield |
| 3 |
W714157 |
Front subframe rearward bolt (2 required) |
| 4 |
W710999 |
Subframe support bracket bolt (4 required) |
| 5 |
5362 |
Subframe support bracket (2 required) |
| 6 |
W710714 |
Front subframe forward bolt (2 required) |
| 7 |
W710736 |
Roll restrictor-to-subframe bolt (2 required) |
| 8 |
W520215 |
Tie-rod end nut (2 required) |
| 9 |
5N356 |
Subframe assembly |
Courtesy of FORD MOTOR COMPANY

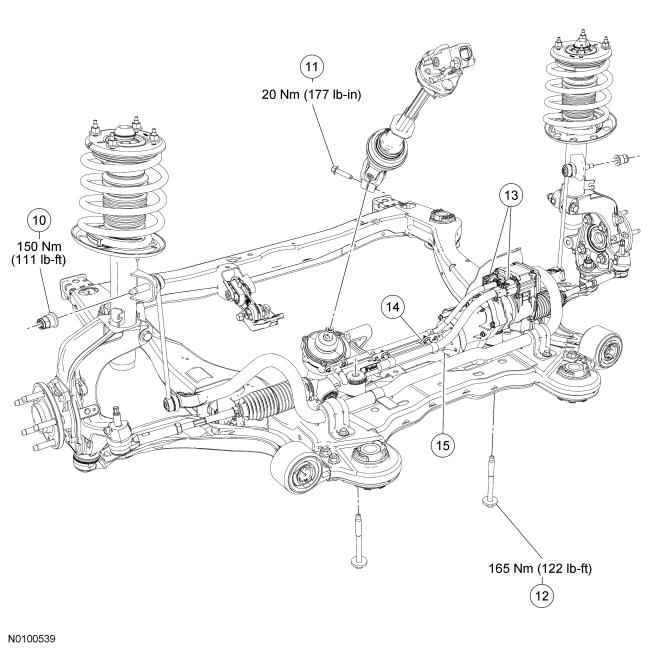

| Item |
Part Number |
Description |
| 10 |
W713968 |
Stabilizer bar link upper nut (2 required) |
| 11 |
W712961 |
Steering column shaft bolt |
| 12 |
W714710 |
Steering gear bolt (2 required) |
| 13 |
- |
Electronic Power Assist Steering (EPAS) electrical connectors (part of 3F720) (2 required) |
| 14 |
- |
Wiring harness retainer |
| 15 |
3200 |
Steering gear |
