Steering Column Motor - Tilt: Notes

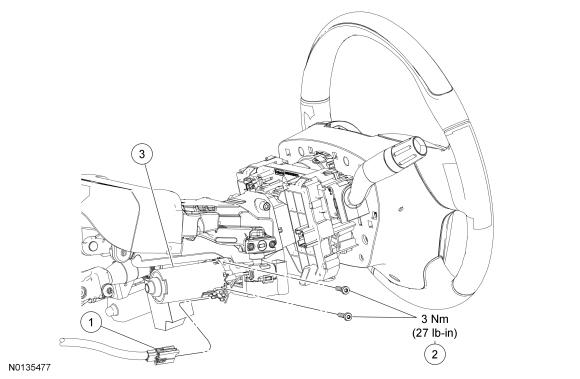

Fig 1: Tilt Steering Column Motor With Torque Specifications
GFD81852Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 - Steering column tilt motor electrical connector (part of 14401)
2 W790120 Steering column tilt motor screws (2 required)
3 3D538 Steering column tilt motor
