Side Obstacle Detection Control Module: Removal

Side obstacle detection control module

NOTE: LH side is shown, RH side is similar.

NOTE: This step is only necessary if the SODL or SODR is being replaced.

Using a diagnostic scan tool, begin the PMI process for the SODL or SODR following the on-screen instructions.

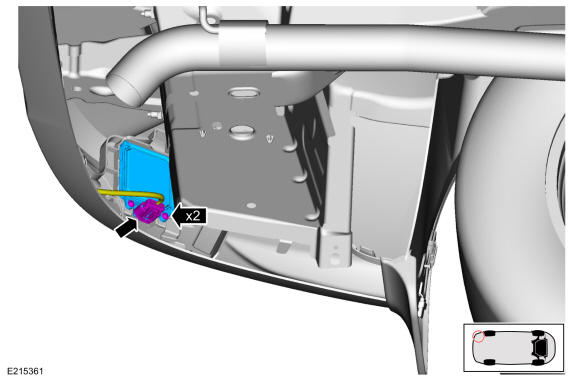

Disconnect the electrical connector, remove the screws and the SODL or SODR.

Courtesy of FORD MOTOR COMPANY

Side obstacle detection control module bracket

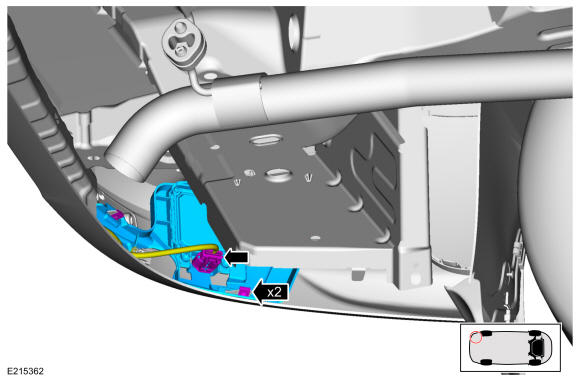

Disconnect the electrical connector, release the clips and remove the side obstacle control module bracket.

Courtesy of FORD MOTOR COMPANY
