Front Seat Control Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.

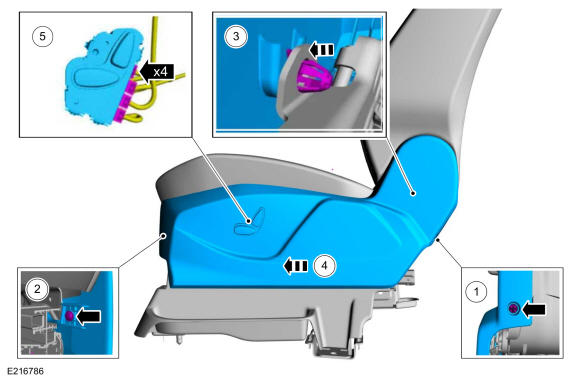

    1. Remove the screw.

      Torque: 27 lb.in (3 Nm)

    2. Remove the screw.

      Torque: 27 lb.in (3 Nm)

    3. Pull the side shield to release it from the backrest.
    4. Slide the side shield forward.
    5. Disconnect the power seat electrical connector and remove the side shield.
    GFD216366Courtesy of FORD MOTOR COMPANY

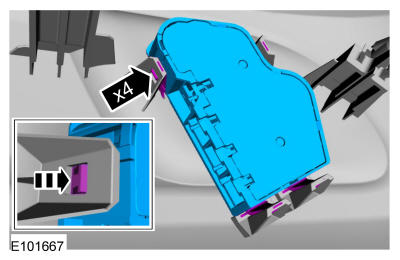

  2. Release the locking clips and remove the seat control switch.
GFD216387Courtesy of FORD MOTOR COMPANY
