Connector Repair Procedures

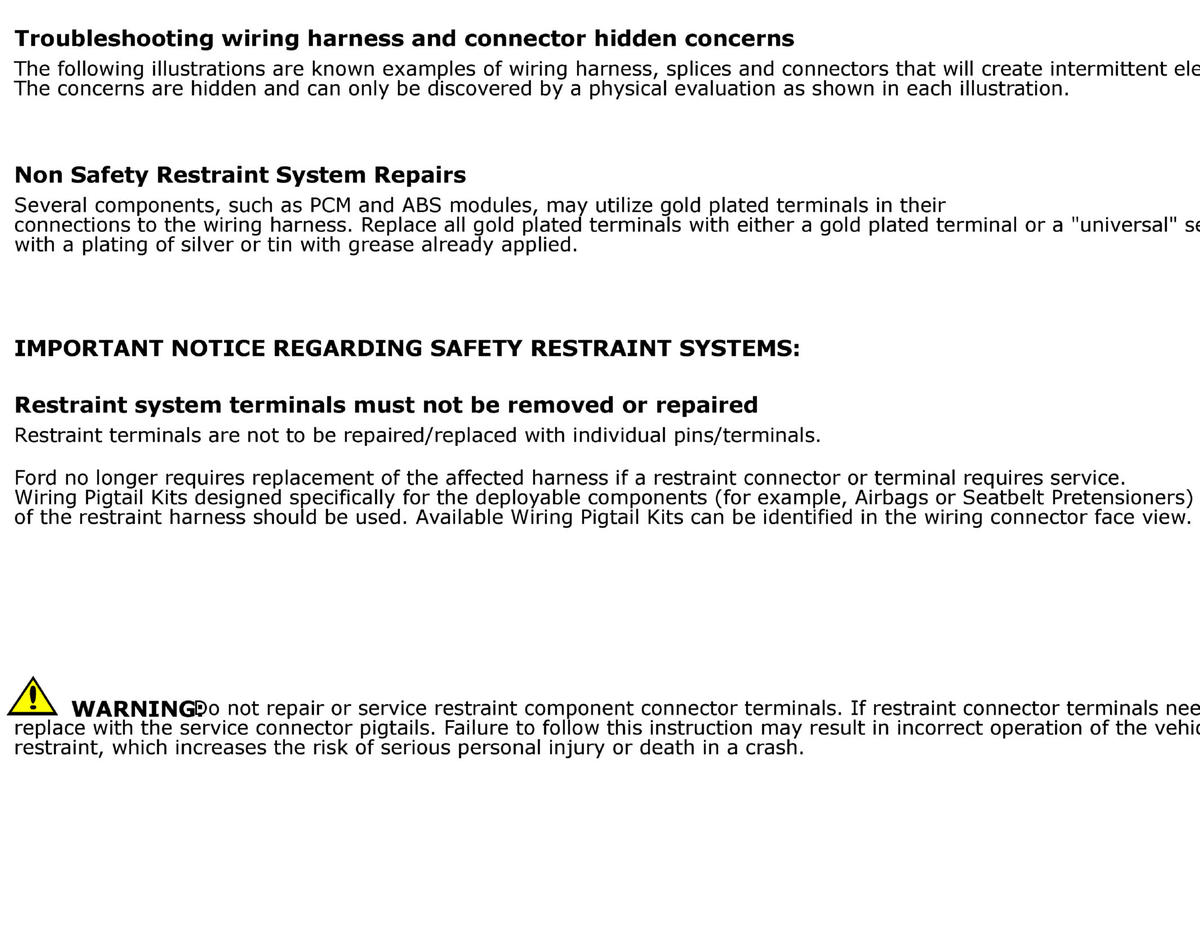

GFDW85641Courtesy of FORD MOTOR COMPANY

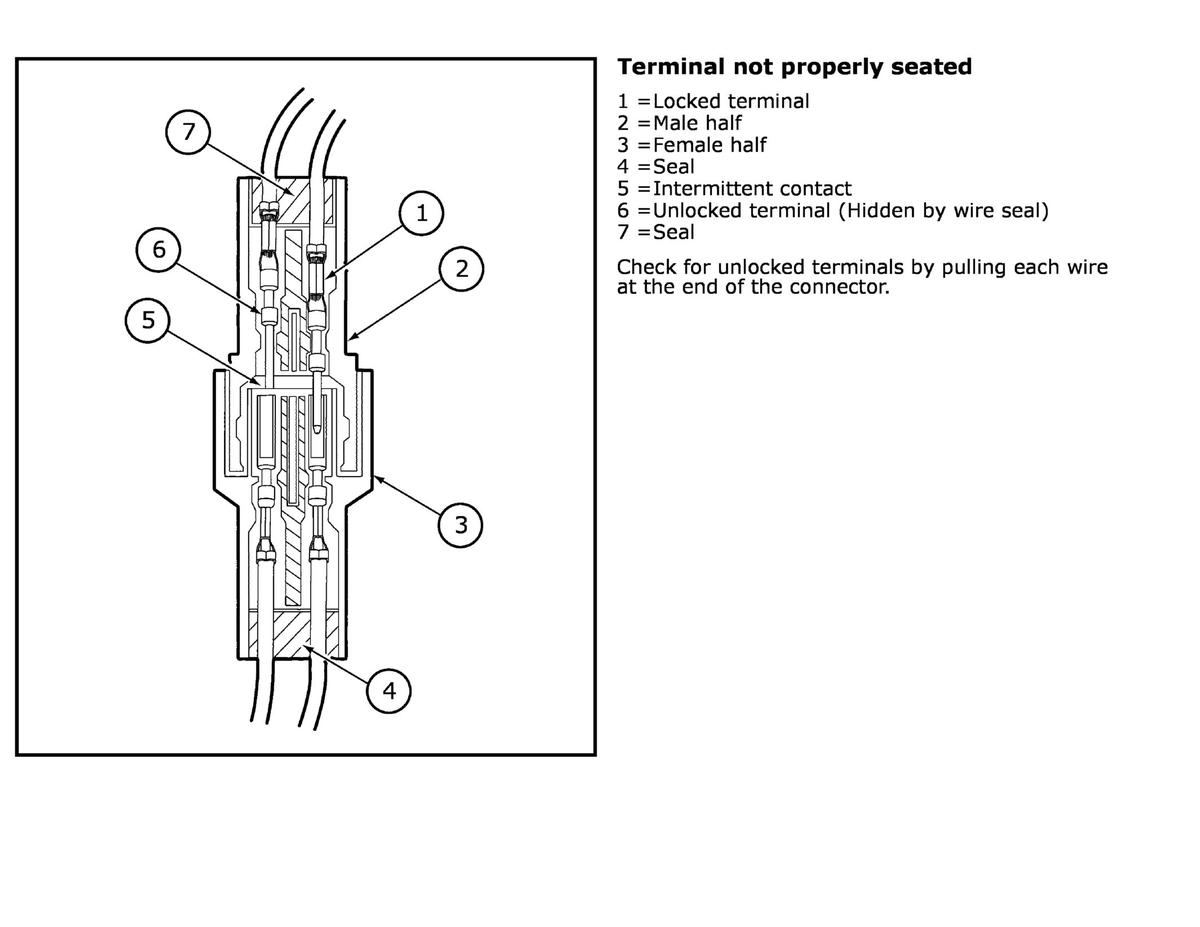

GFDW85642Courtesy of FORD MOTOR COMPANY

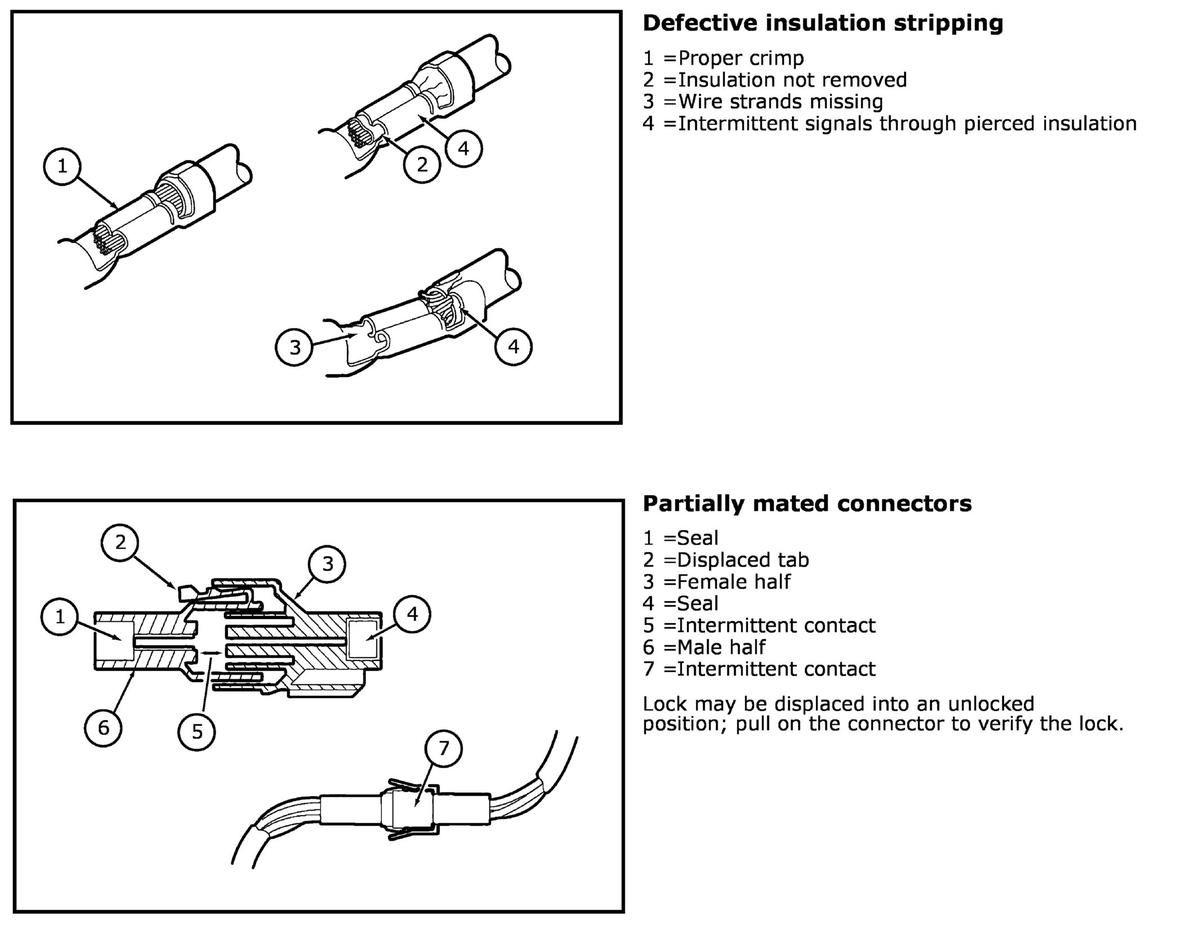

GFDW85643Courtesy of FORD MOTOR COMPANY

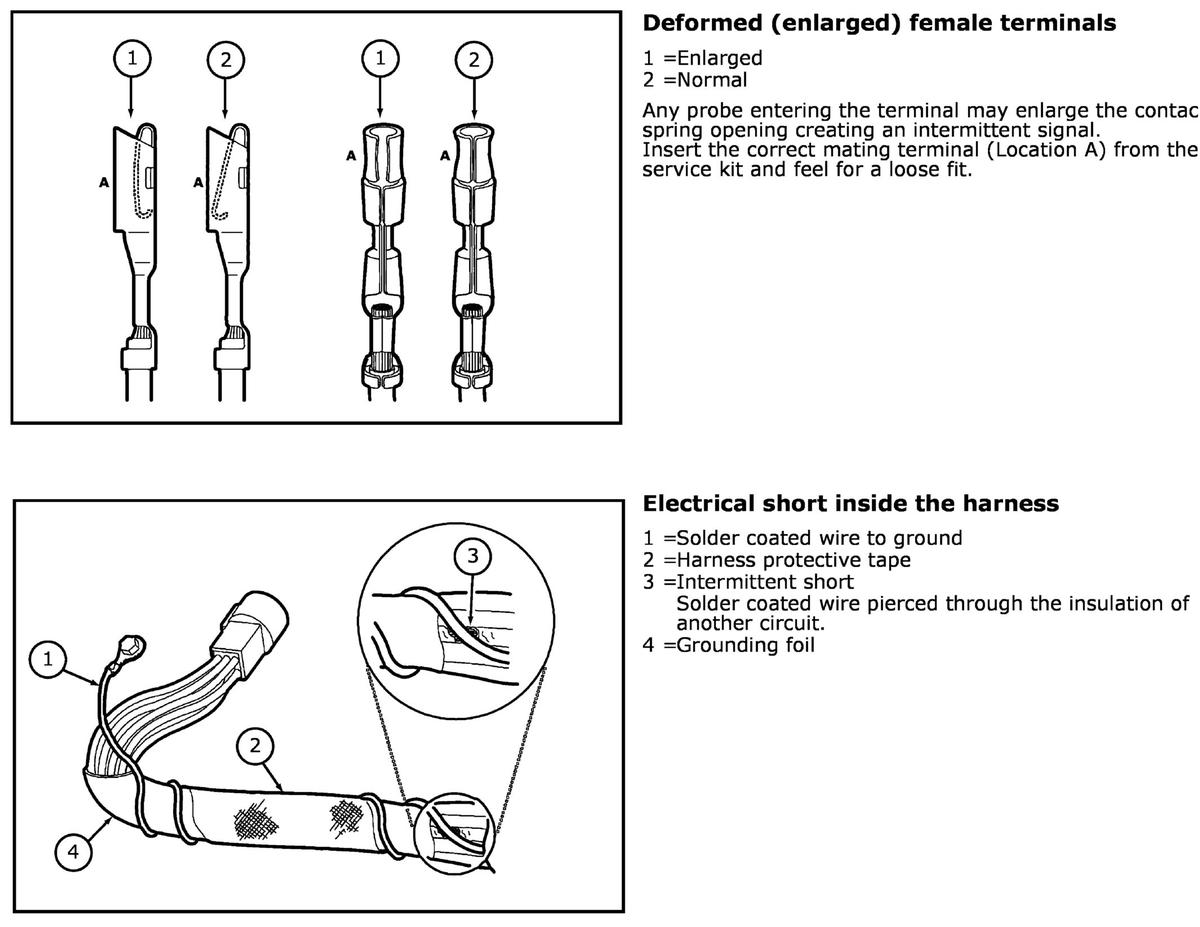

GFDW85644Courtesy of FORD MOTOR COMPANY

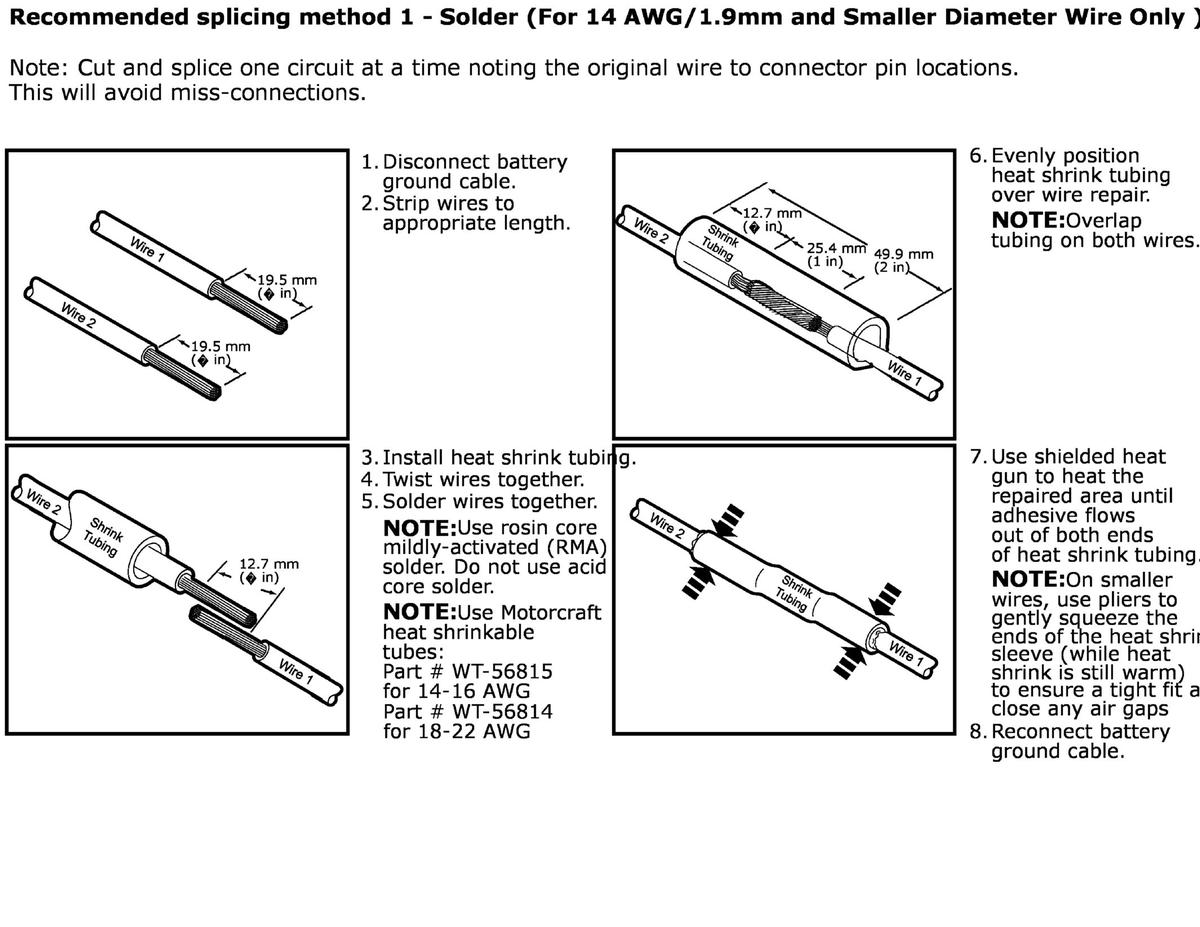

GFDW85645Courtesy of FORD MOTOR COMPANY

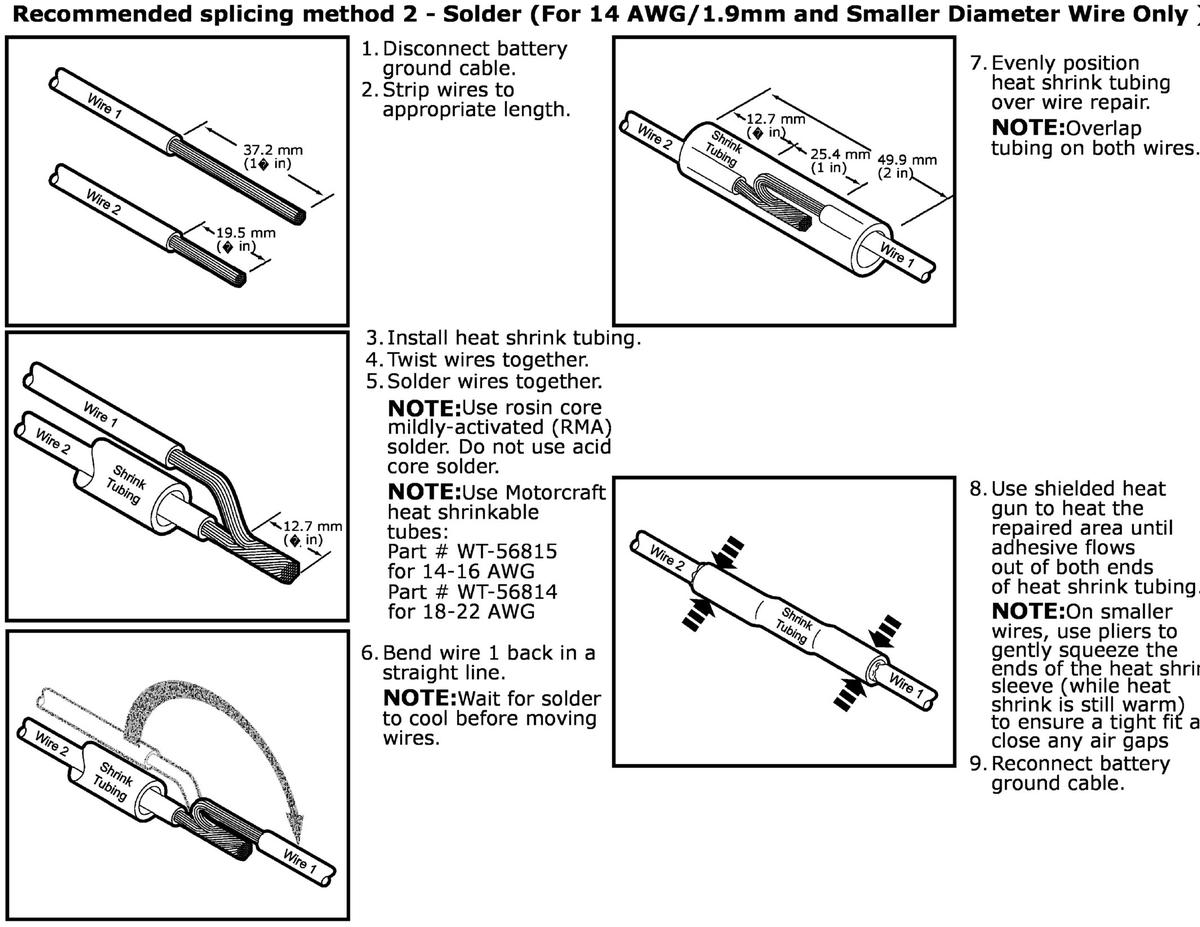

GFDW85646Courtesy of FORD MOTOR COMPANY

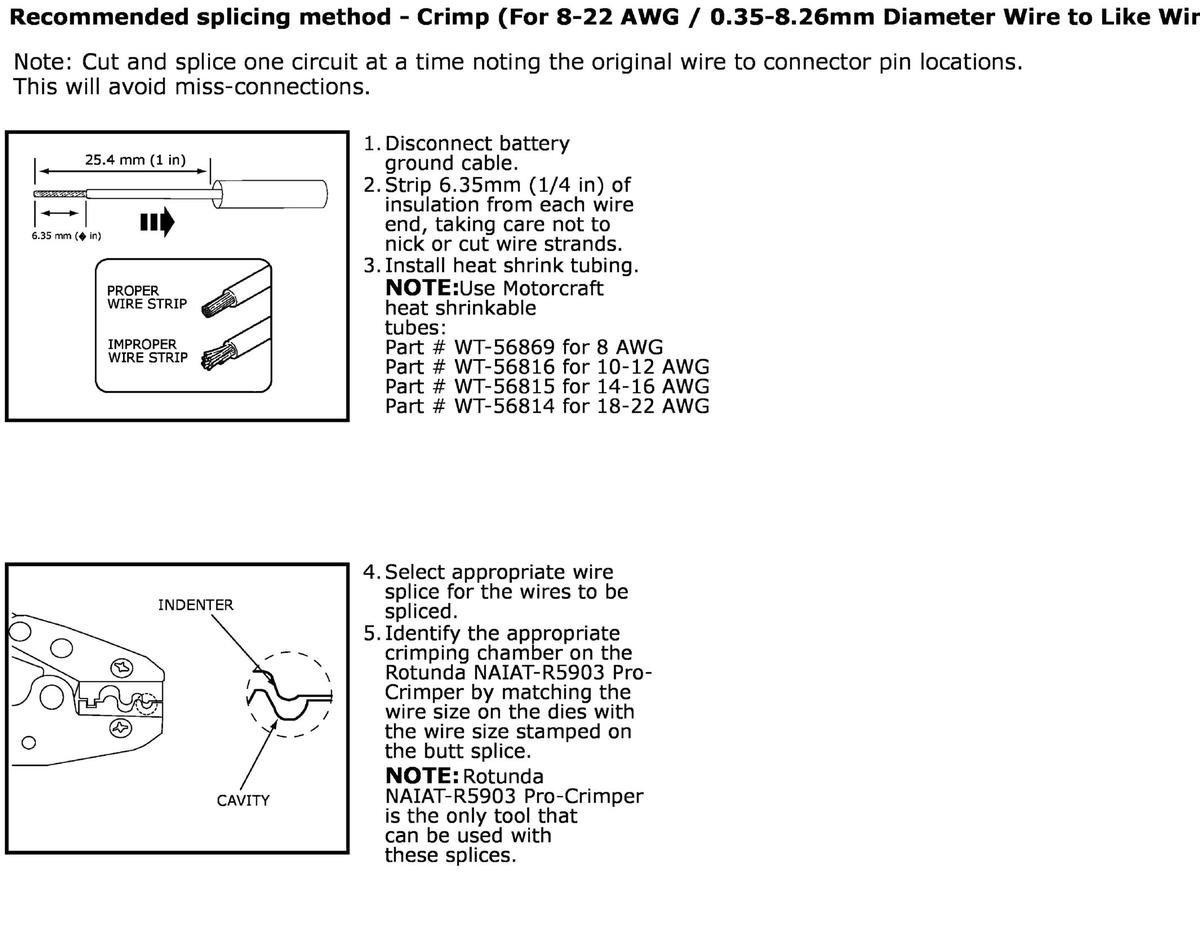

GFDW85647Courtesy of FORD MOTOR COMPANY

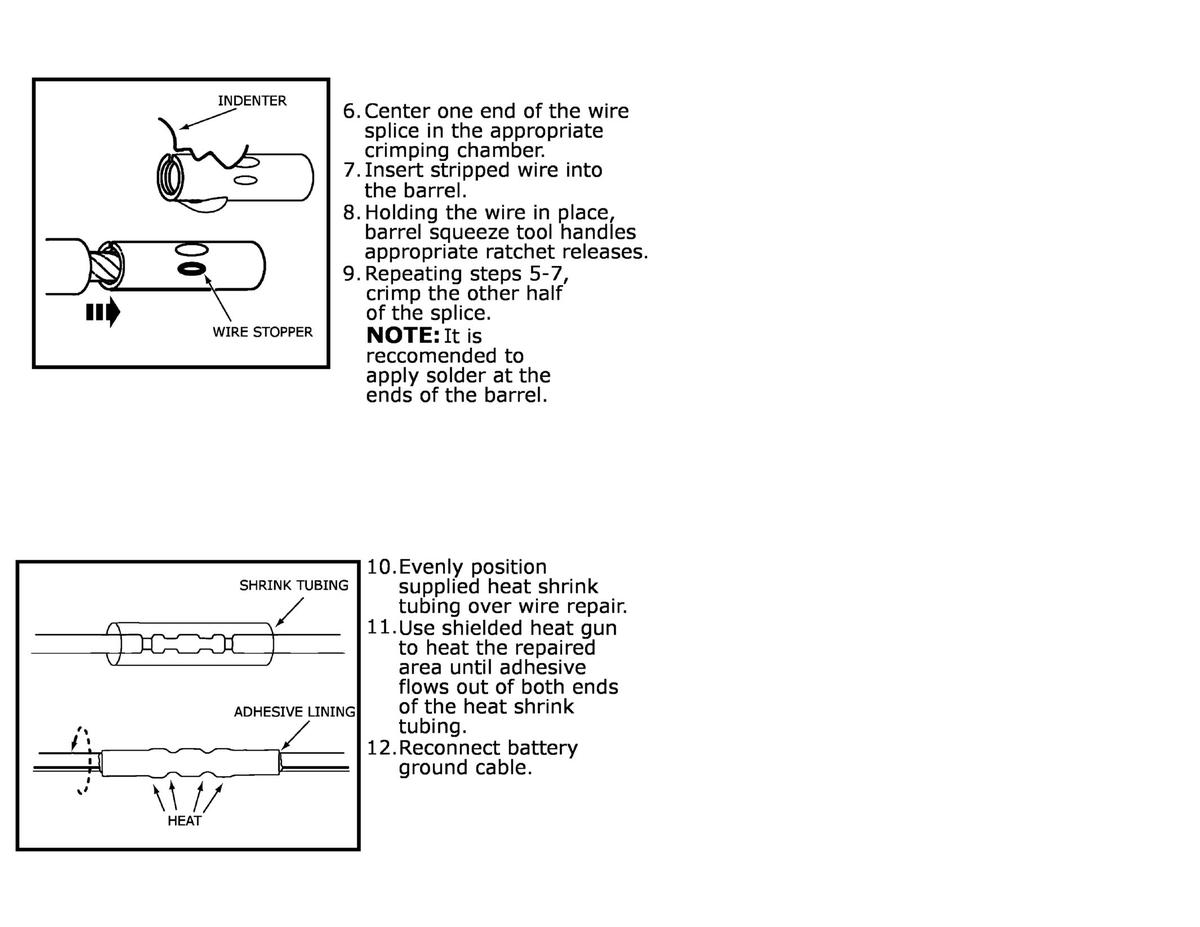

GFDW85648Courtesy of FORD MOTOR COMPANY

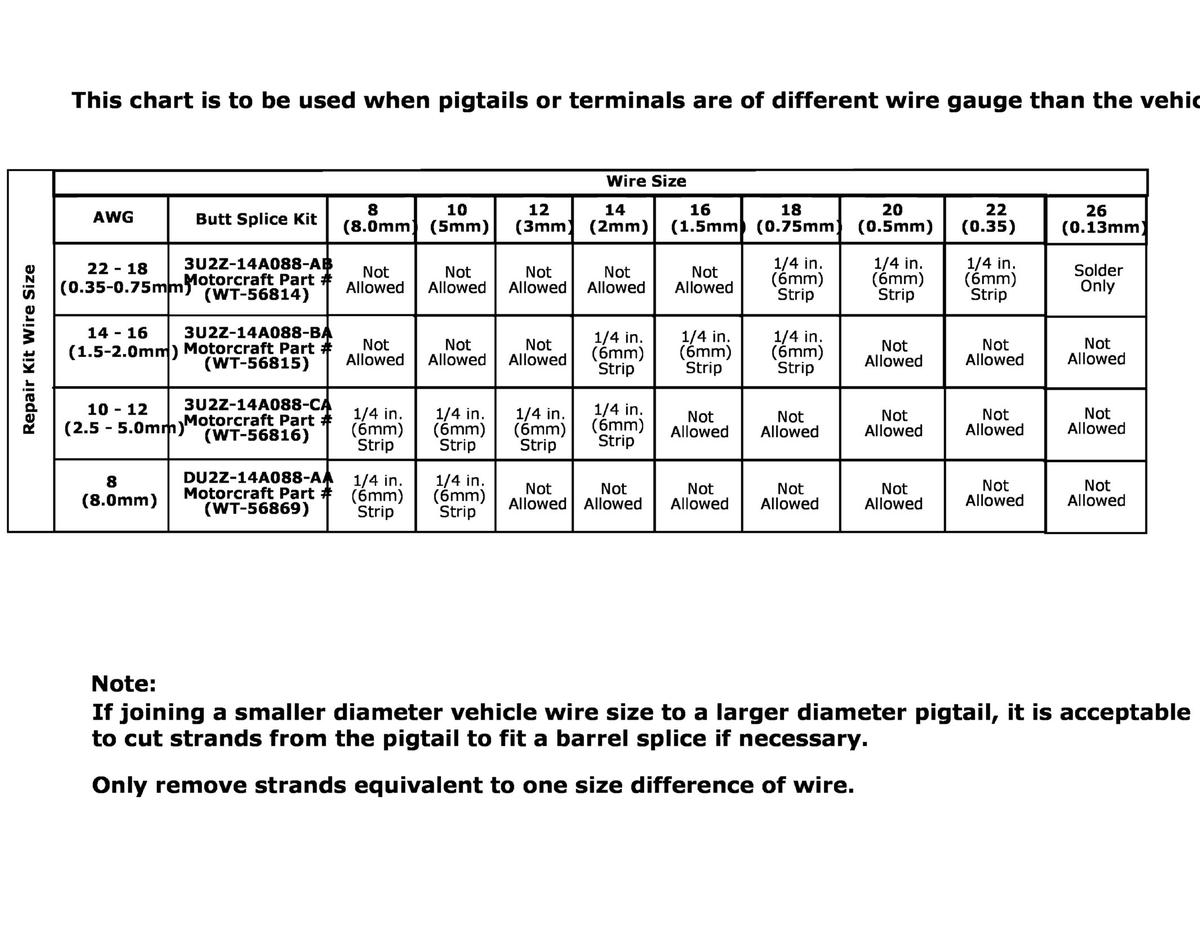

GFDW85649Courtesy of FORD MOTOR COMPANY
