Electronic Engine Controls - Component Location

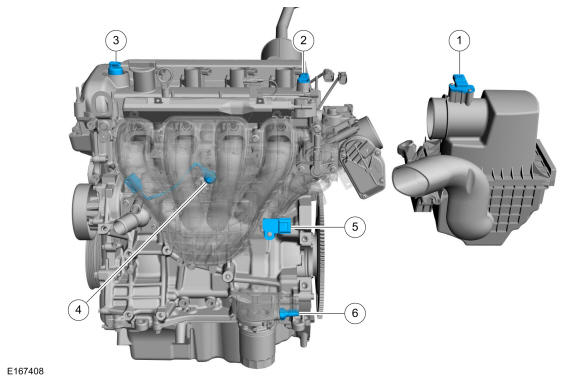

Front view of engine

GFD214870Courtesy of FORD MOTOR COMPANY
Item Description
1 MAF sensor
2 CMP sensor
3 VVT oil control solenoid
4 KS
5 MAP sensor
6 Oil pressure switch

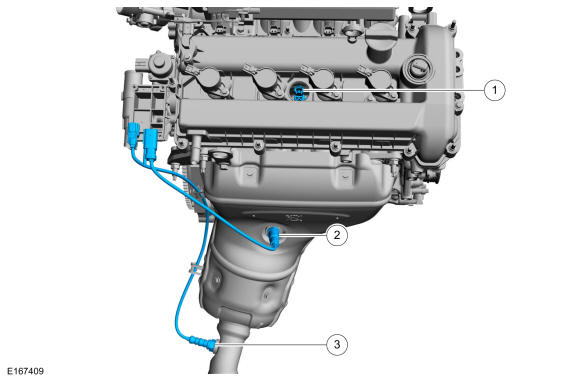

Rear view of engine

GFD214871Courtesy of FORD MOTOR COMPANY
Item Description
1 CHT sensor
2 HO2S
3 Catalyst monitor sensor
