Fuel Pump Driver Module (FPDM): Removal
NOTE:
Removal steps in this procedure may contain installation details.

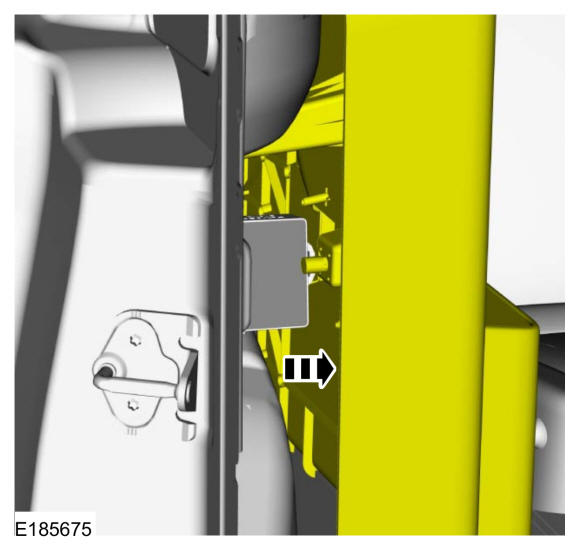

- Position aside the RH load space trim panel.
 Courtesy of FORD MOTOR COMPANY
|
-

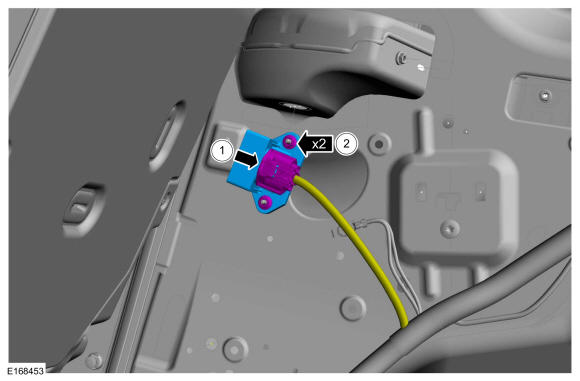

- Disconnect the FPDM electrical connector.
- Remove the FPDM retaining nuts and the FPDM.
Torque : 89 lb.in (10 Nm)
 Courtesy of FORD MOTOR COMPANY
|
