Component Location

WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.

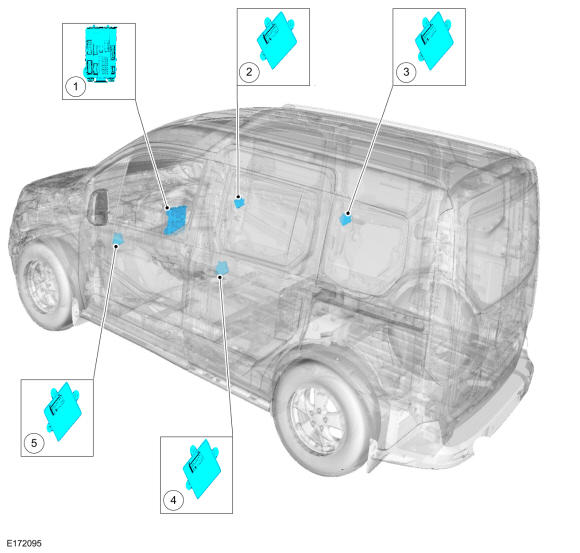

GFD150930Courtesy of FORD MOTOR COMPANY
Item Description
1 BCM
2 PDM
3 Passenger Rear Door Module (PRDM)
4 Driver Rear Door Module (DRDM)
5 DDM
