Body Control Module (BCM): Removal

WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If installing a new BCM, verify at least 2 of the vehicle keys are available prior to carrying out this procedure.

1.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Using a diagnostic scan tool, begin the PMI process for the BCM following the on-screen instructions. Refer to: Module Configuration - System Operation and Component Description .

2.

Disconnect the battery cables. Refer to: Battery Disconnect and Connect .

3.
- Disengage the retaining tab and remove the retainers.
- Remove the RH side access panel.

Courtesy of FORD MOTOR COMPANY

4.

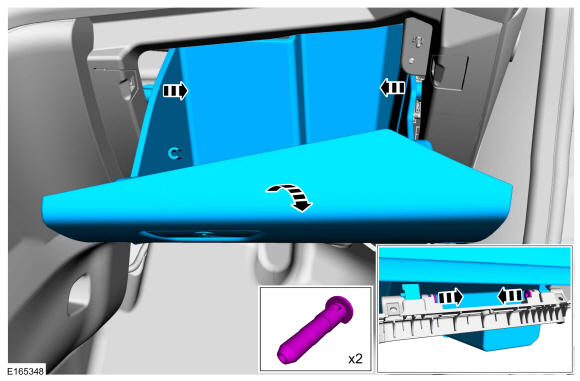

Remove the retainers and the glove box cover.

Courtesy of FORD MOTOR COMPANY

5.

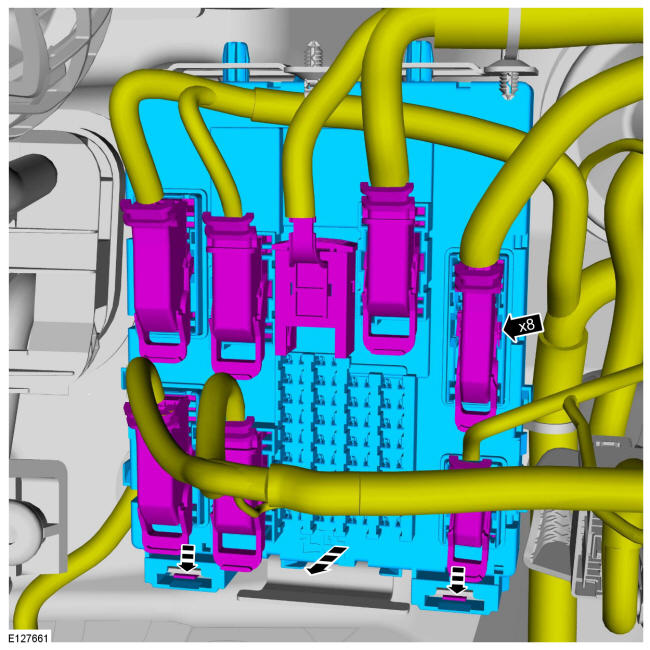

Disconnect the BCM electrical connectors and remove the BCM.

Courtesy of FORD MOTOR COMPANY
