Front Door Module (FDM): Removal

WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

    Remove the front door trim panel. Refer to: Front Door Trim Panel .

  1. 2.

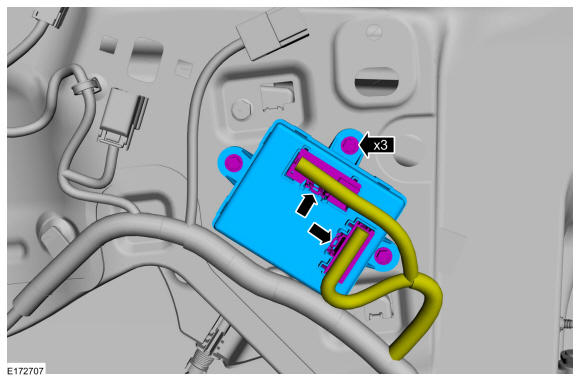

    Remove front door module.
    • Disconnect the electric connectors and remove the bolts.
GFD150935Courtesy of FORD MOTOR COMPANY
