Front Brake Pads: Installation

WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.

1.

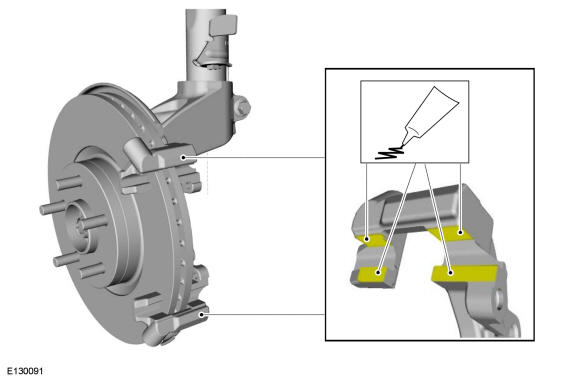

Apply the specified grease to the brake caliper anchor plate as shown.
Material: Multi-Purpose Grease (WSS-M12A4-A2)

GFD148309

Courtesy of FORD MOTOR COMPANY

2.

To install, reverse the removal procedure.

3.

Depress the brake pedal, check the brake fluid level in the brake fluid reservoir and top up as necessary with brake fluid. Refer to: Specifications .
