Front Disc Brake Shield: Removal

WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the brake disc. Refer to: Brake Disc .

2.

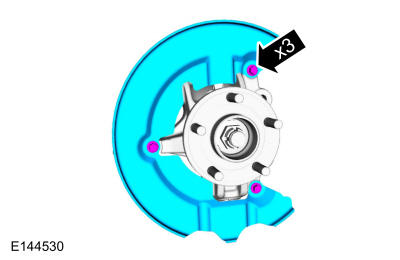

Remove the bolts and the brake disc shield.
Torque: 22 lb.ft (30 Nm)
