Accelerator Pedal: Removal

WARNING: This page is about a different car, the 2016 Ford Transit Connect. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

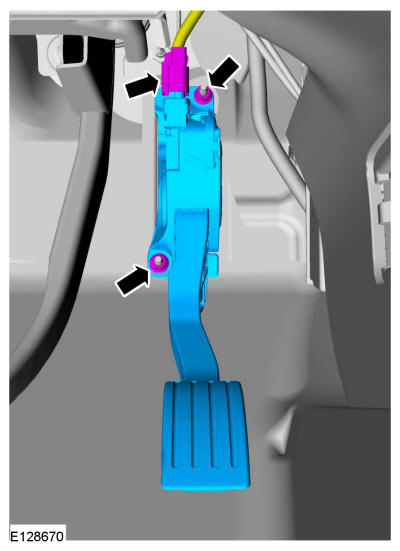

Disconnect the electrical connector, remove the bolts and the accelerator pedal assembly.
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
