VC Codes

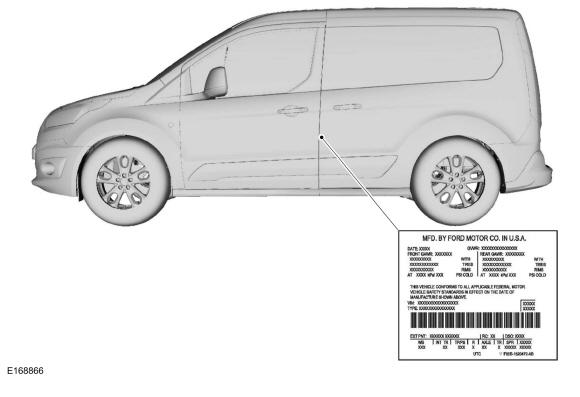

VC Label Locator
The VC label contains the manufacturer name, the month and year of manufacture, the certification statement and the VIN. It also includes GVW and tire information. If a vehicle requires replacement of the VC label and is 4 years old or less, an authorized dealer must submit the VIN to their respective regional office. The regional office will submit a web form to the assembly plant for the replacement label. Once the label has been printed, a representative from the regional office will deliver the label to the dealer and witness installation on the vehicle. If a vehicle is more than 4 years old and requires a replacement label, the dealer must submit a request to the Department of Motor Vehicles.

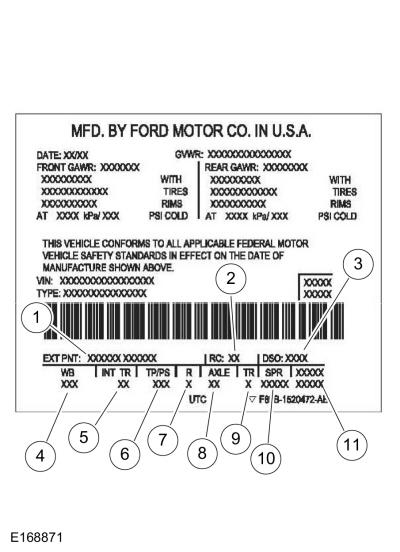

| Item | Description |
|---|---|
| 1 | Exterior paint code |
| 2 | Region code |
| 3 | District special order (DSO) code |
| 4 | Wheelbase code |
| 5 | Interior trim code |
| 6 | Tape/paint stripe code |
| 7 | Radio code |
| 8 | Axle code |
| 9 | Transmission code |
| 10 | Spring code |
| 11 | Powertrain calibration information |
Paint Code
Paint codes are listed as a 2-part code. The first set of paint code numbers/letters indicate the vehicle primary body color. The second set of letters/numbers (if applicable) indicate a 2-tone or accent body color. All paint codes are a base coat/clear coat finish.
- BY - School Bus Yellow
- G1 - Absolute Black
- HN - Guard
- J4 - Deep Impact Blue
- J7 - Magnetic
- PQ - Race Red
- S4 - Solar Yellow
- TY - Silver Metallic
- UV - Dark Blue
- Z2 - Frozen White
Wheelbase Code
The applicable wheelbase code(s) follows:
- 105 - 105 in. (2667 mm)
- 121 - 121 in. (3073 mm)
Interior Trim Codes
Interior trim codes are listed as a 2-part code. The first digit listed indicates the seat and fabric style. The second digit listed indicates the interior trim color.
Trim Codes
- 6 - Traxon/Max cloth seats
- 7 - Route/Max cloth seats
- 8 - Torino leather seats
- E - Artec/Prima vinyl seats
Interior Trim Color Codes
- B - Charcoal Black
- K - Pewter
- L - Medium Stone Gray
Tape/Paint Stripe Codes
Tape and paint stripe codes do not apply.
Radio Codes
The following lists available radio codes:
- 1 - AM/ FM stereo
- 2 - AM/ FM stereo with CD player
- 4 - AM/ FM stereo, CD player and SYNC
- 5 - AM/ FM stereo, CD player, SYNC and SDARS (Satellite Digital Audio Receiver System)
- U - AM/ FM stereo, CD player with rear view camera
- W - AM/ FM stereo, CD player, SYNC and rear view camera
- X - AM/ FM stereo, CD player, SYNC, SDARS (Satellite Digital Audio Receiver System) and rear view camera
- Y - AM/ FM stereo, CD player, SYNC, My Ford Touch, SDARS (Satellite Digital Audio Receiver System) and rear view camera
Axle Codes
The following lists available axle ratios:
- 3C - 3.21 ratio
Transmission Codes
Available transmissions are as follows:
- 6 - 6-speed automatic (6F)
Spring Codes
Spring codes are listed as a 2-part code. The first set of characters identify the front springs. The second set of characters identify the rear springs.
Front Springs
- Base part number - 5310
Rear Springs
- Base part number - 5560
