OEM Ground Distribution: Grounds

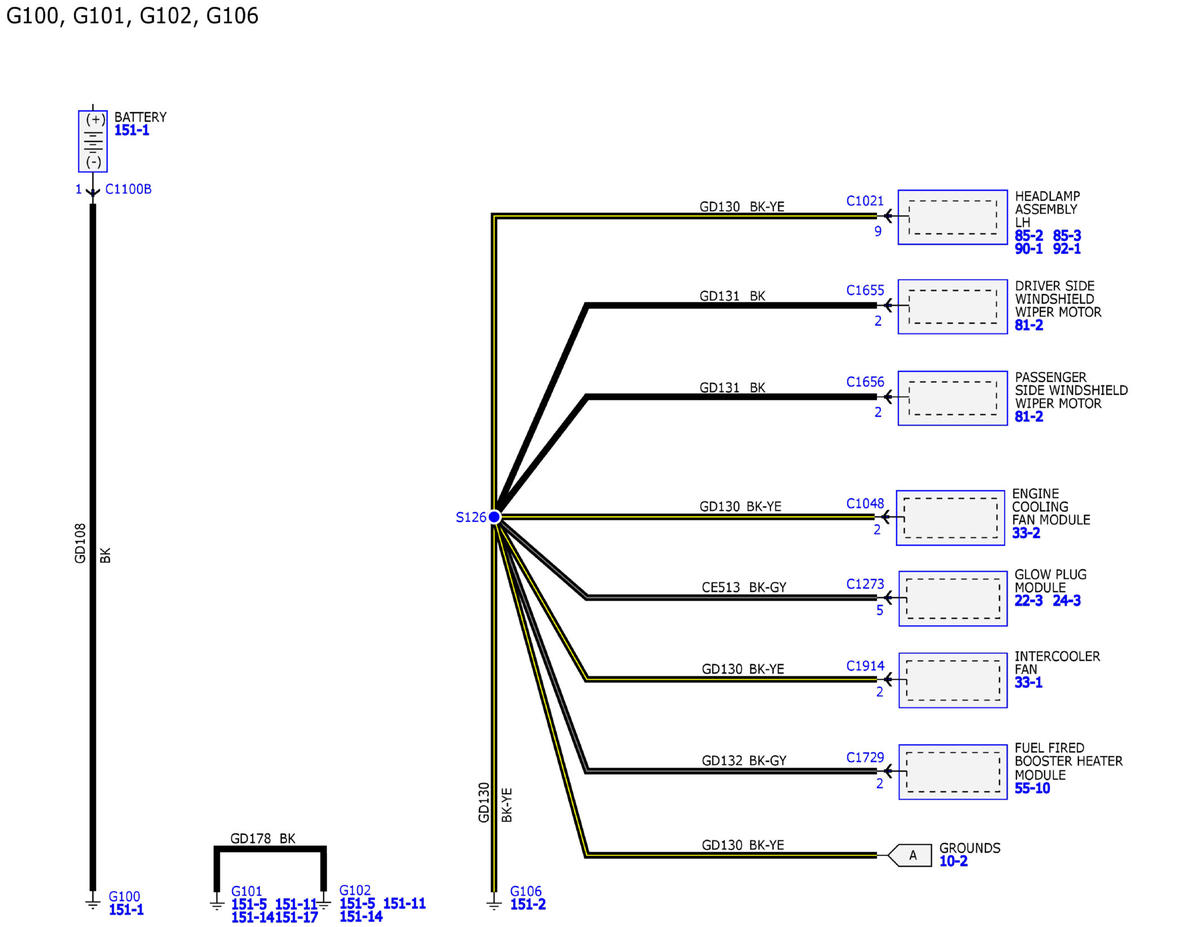

GFDW85664Courtesy of FORD MOTOR COMPANY

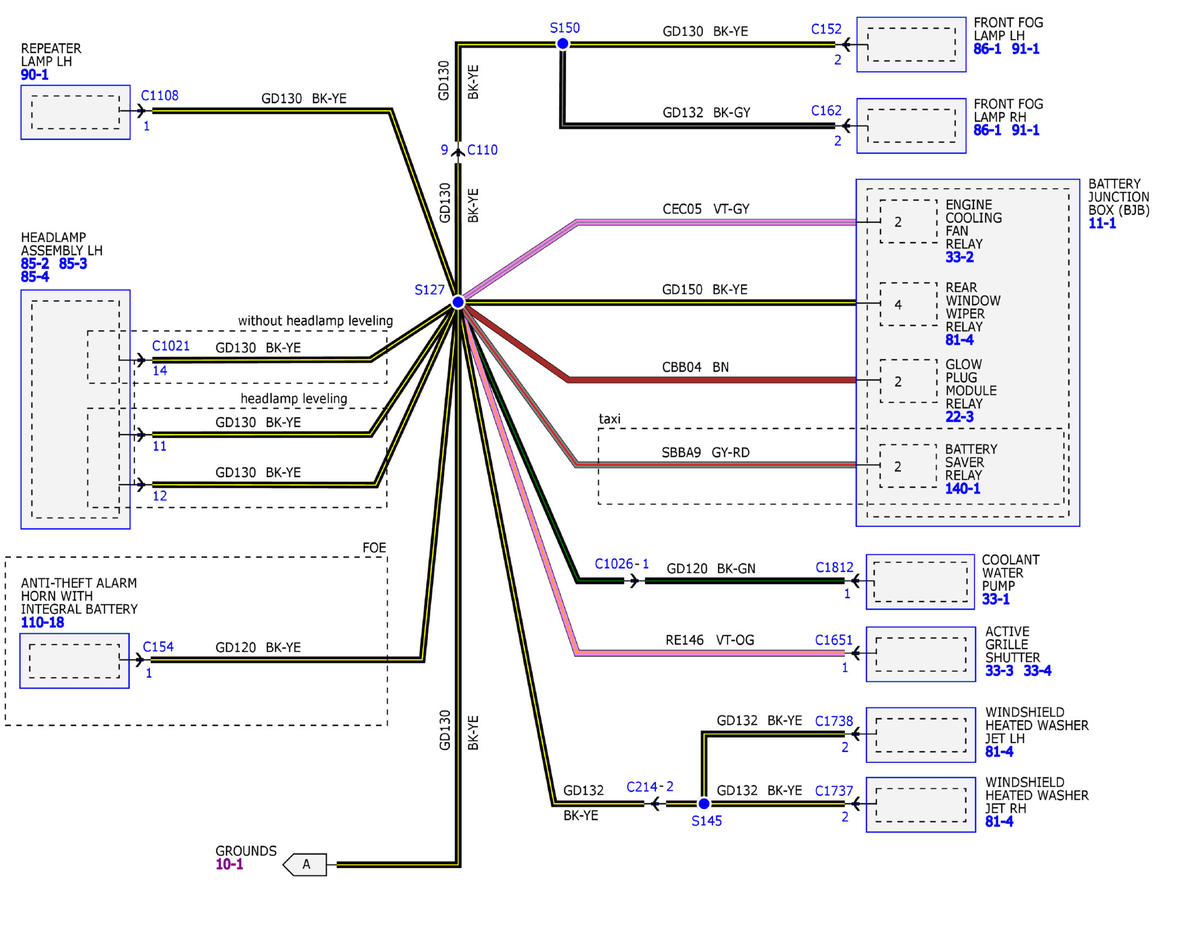

GFDW85665Courtesy of FORD MOTOR COMPANY

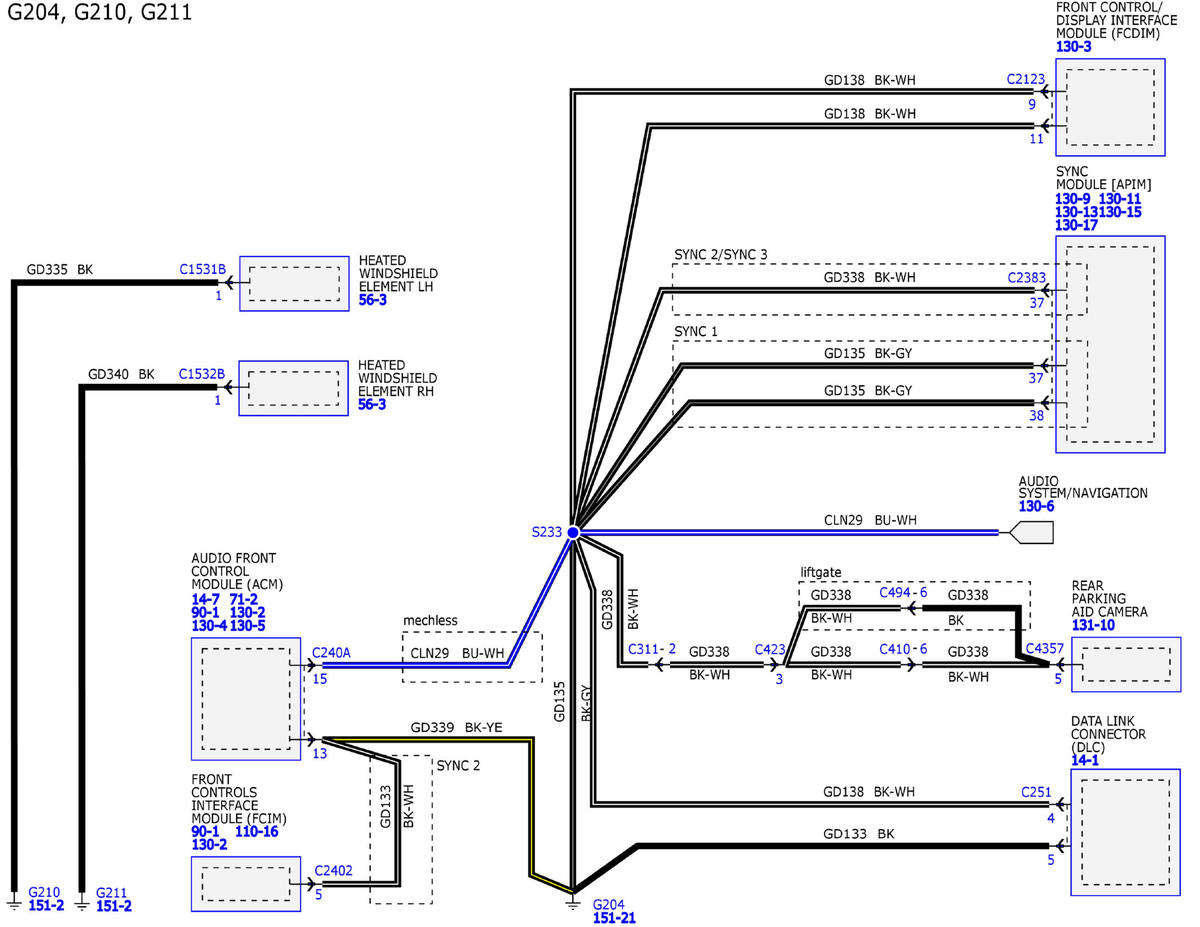

GFDW85666Courtesy of FORD MOTOR COMPANY

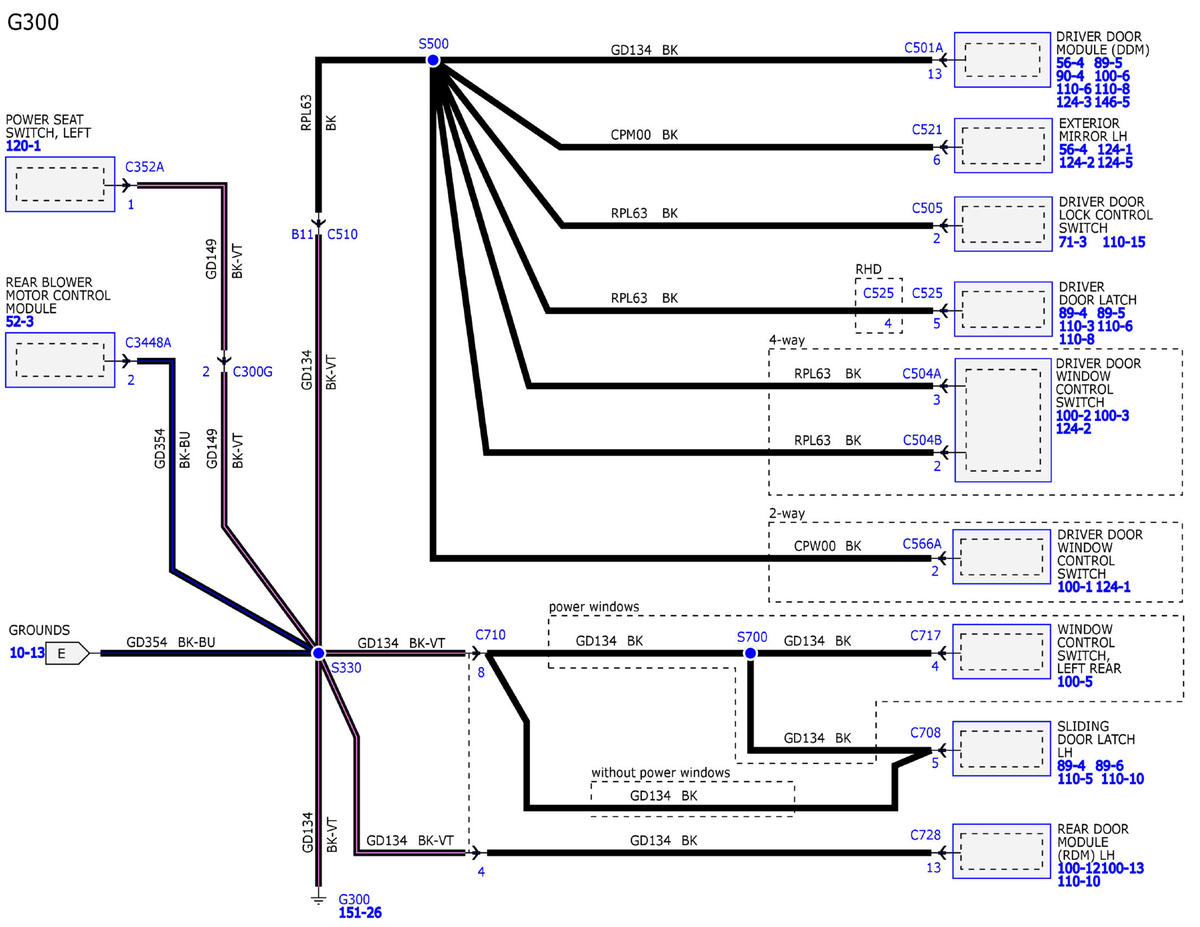

GFDW85667Courtesy of FORD MOTOR COMPANY

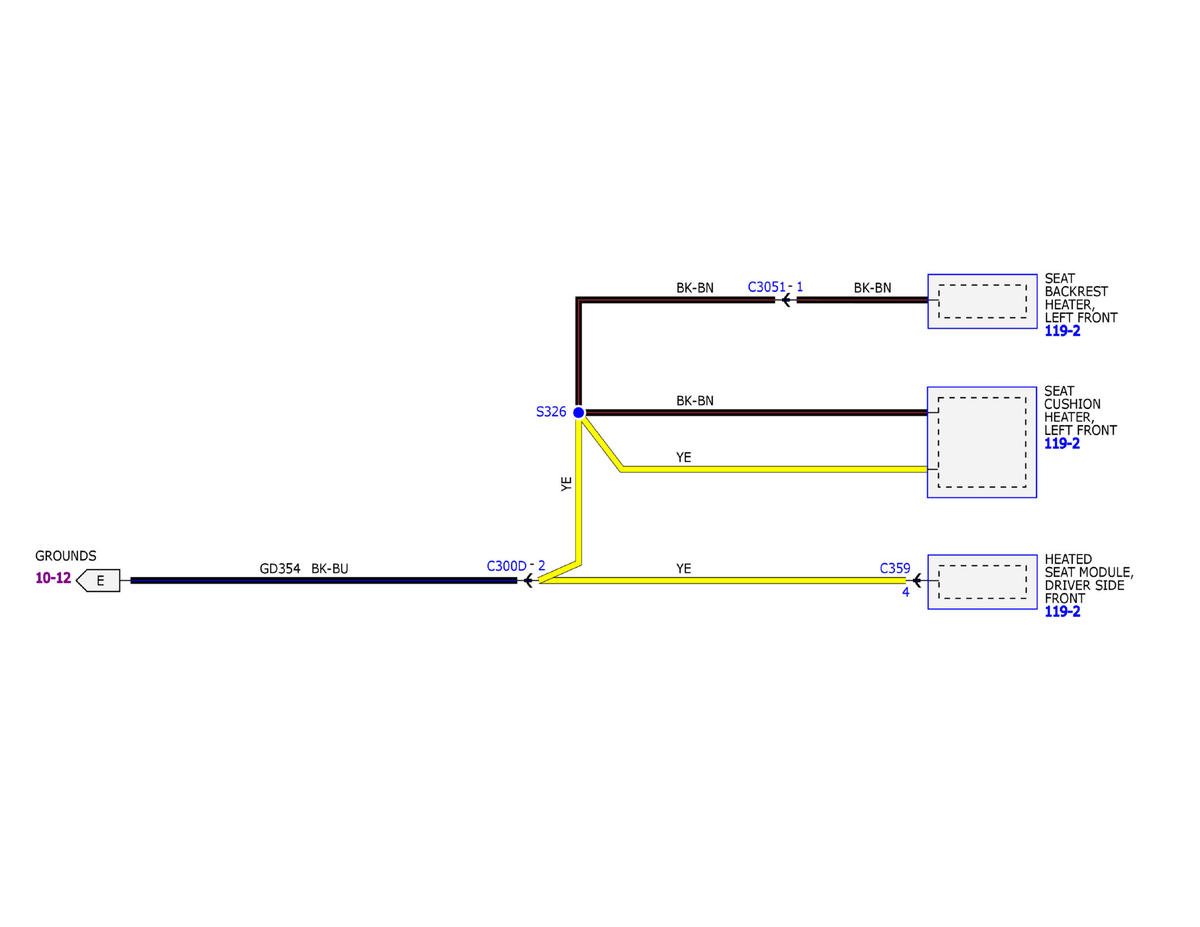

GFDW85668Courtesy of FORD MOTOR COMPANY

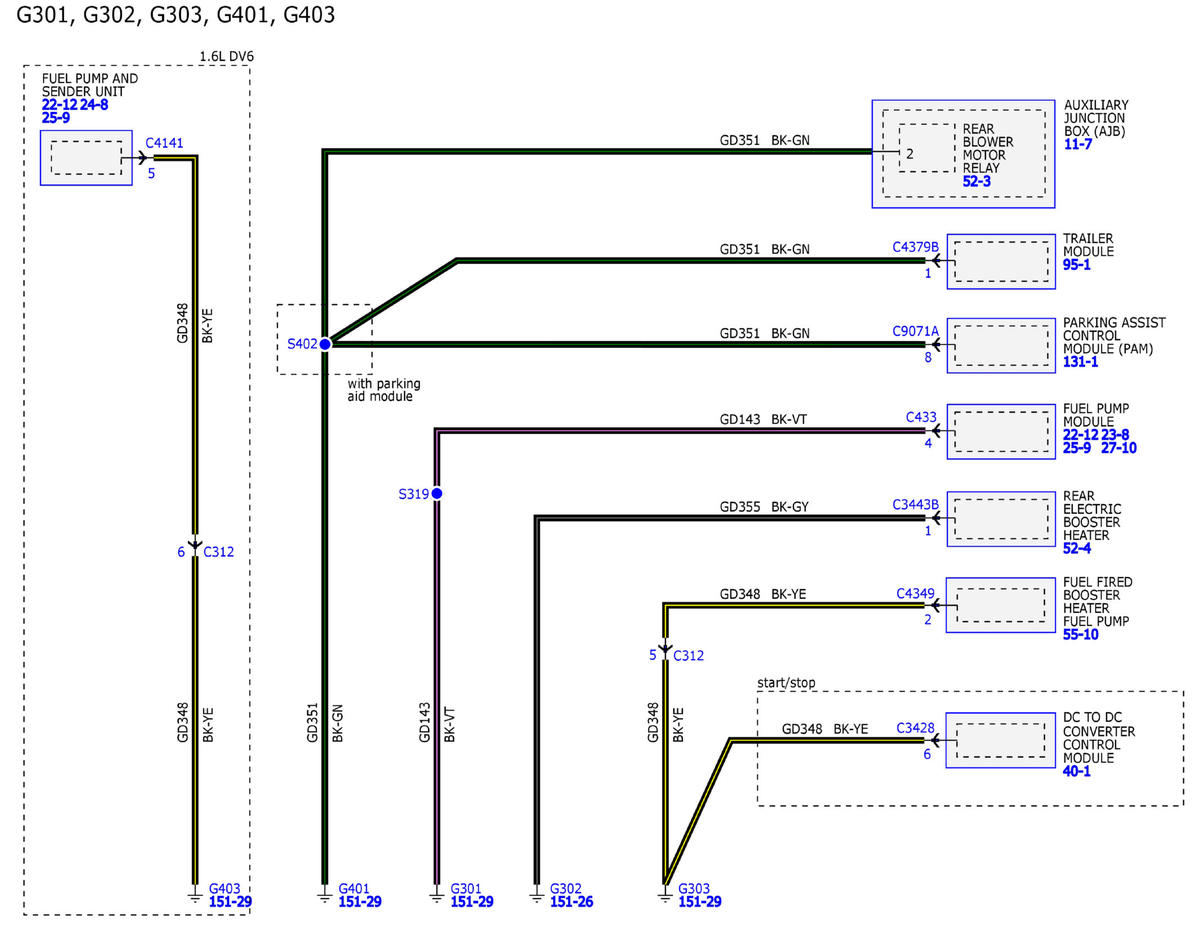

GFDW85669Courtesy of FORD MOTOR COMPANY

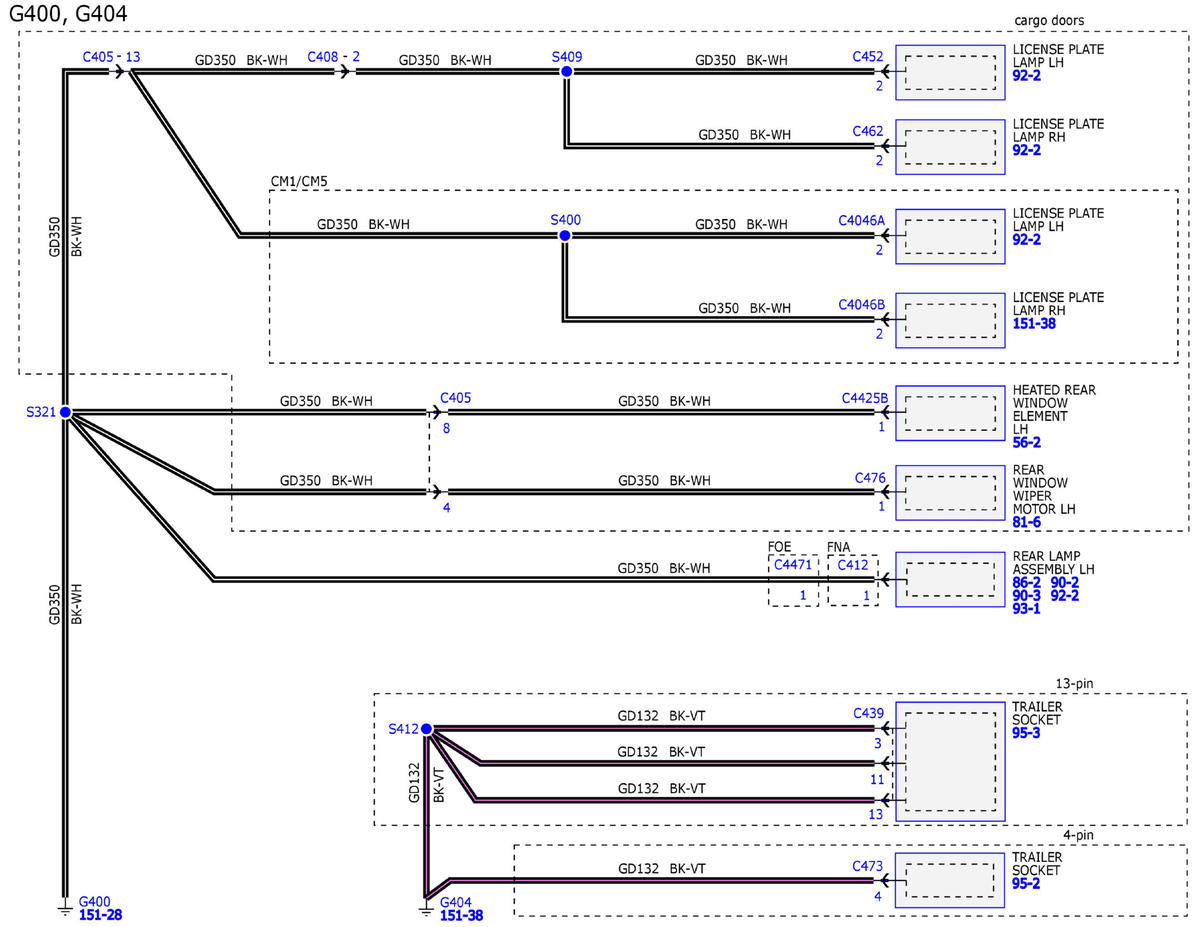

GFDW85670Courtesy of FORD MOTOR COMPANY

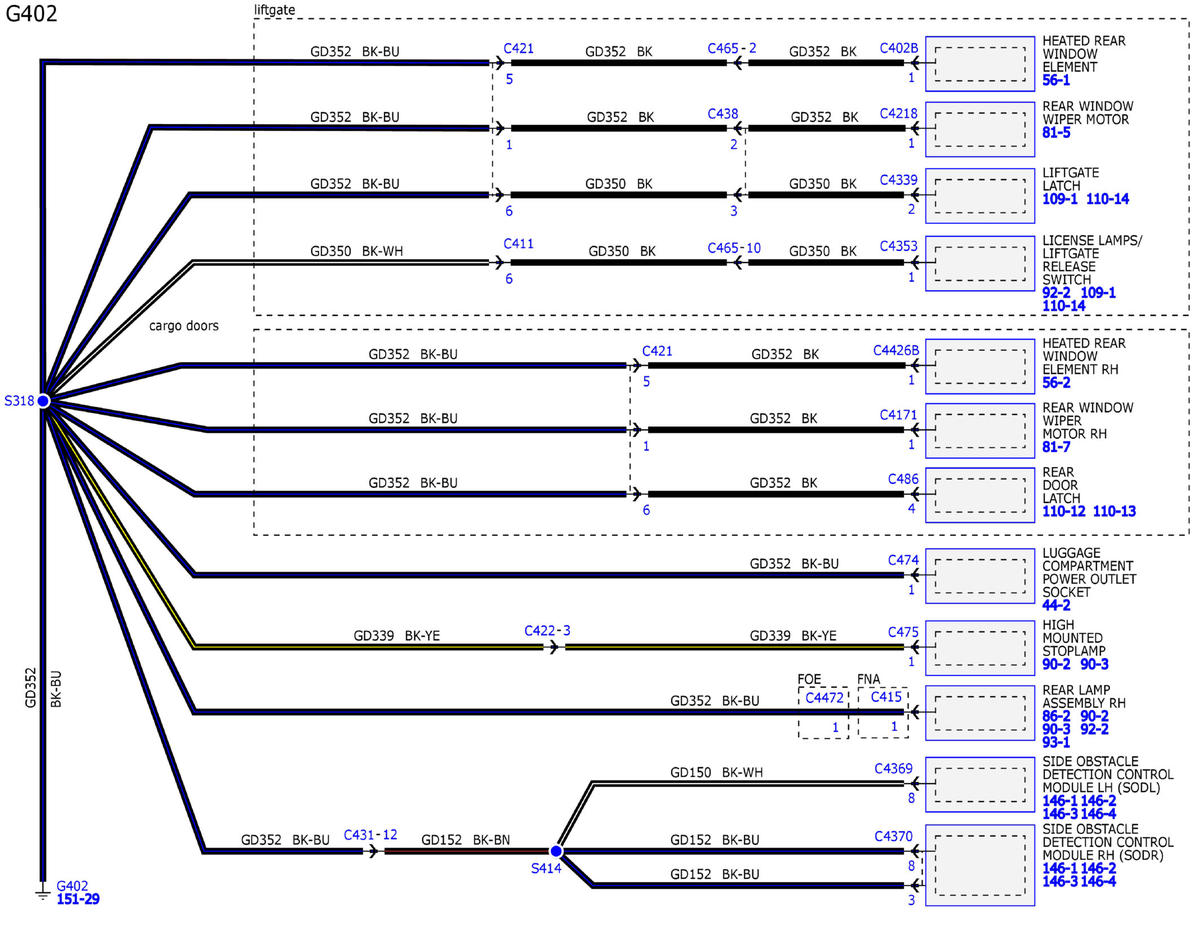

GFDW85671Courtesy of FORD MOTOR COMPANY

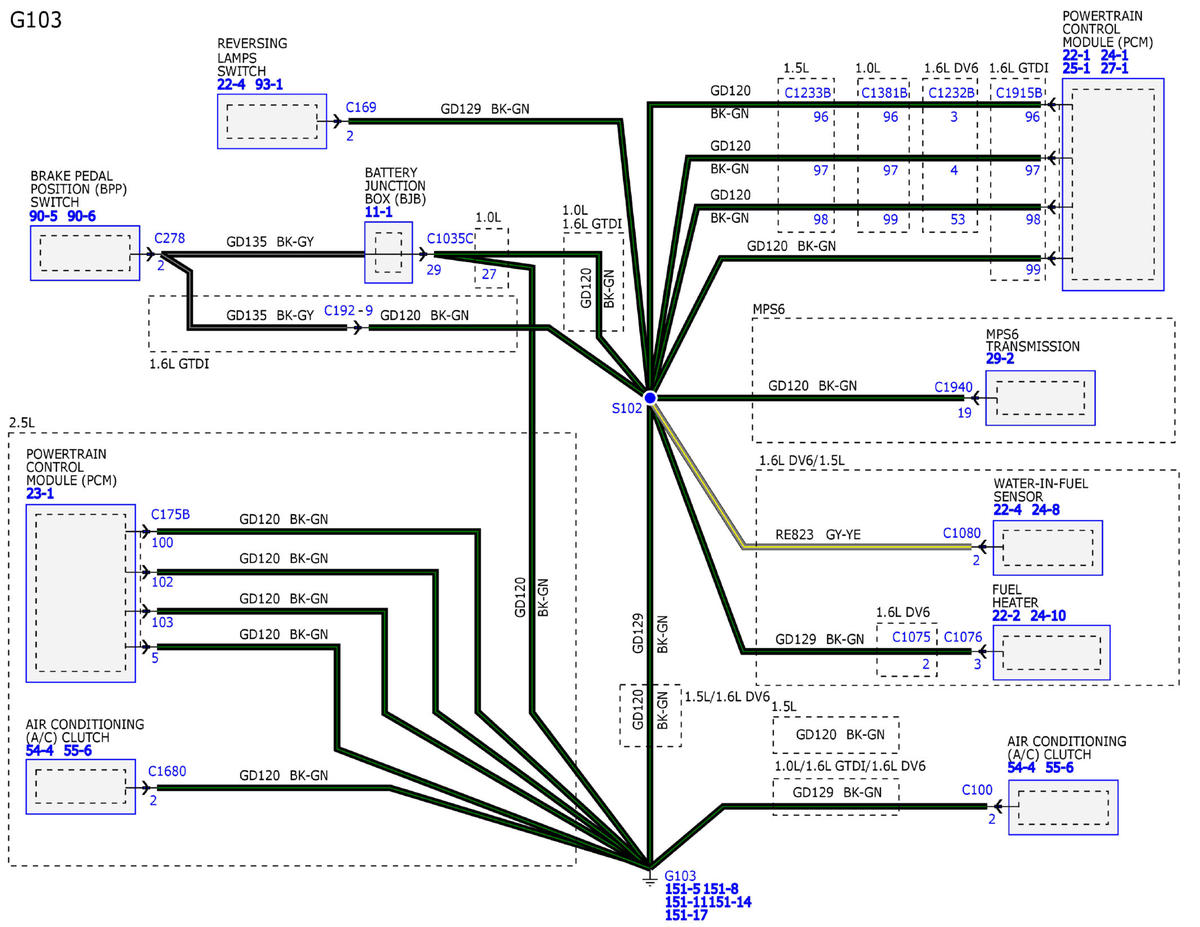

GFDW85672Courtesy of FORD MOTOR COMPANY

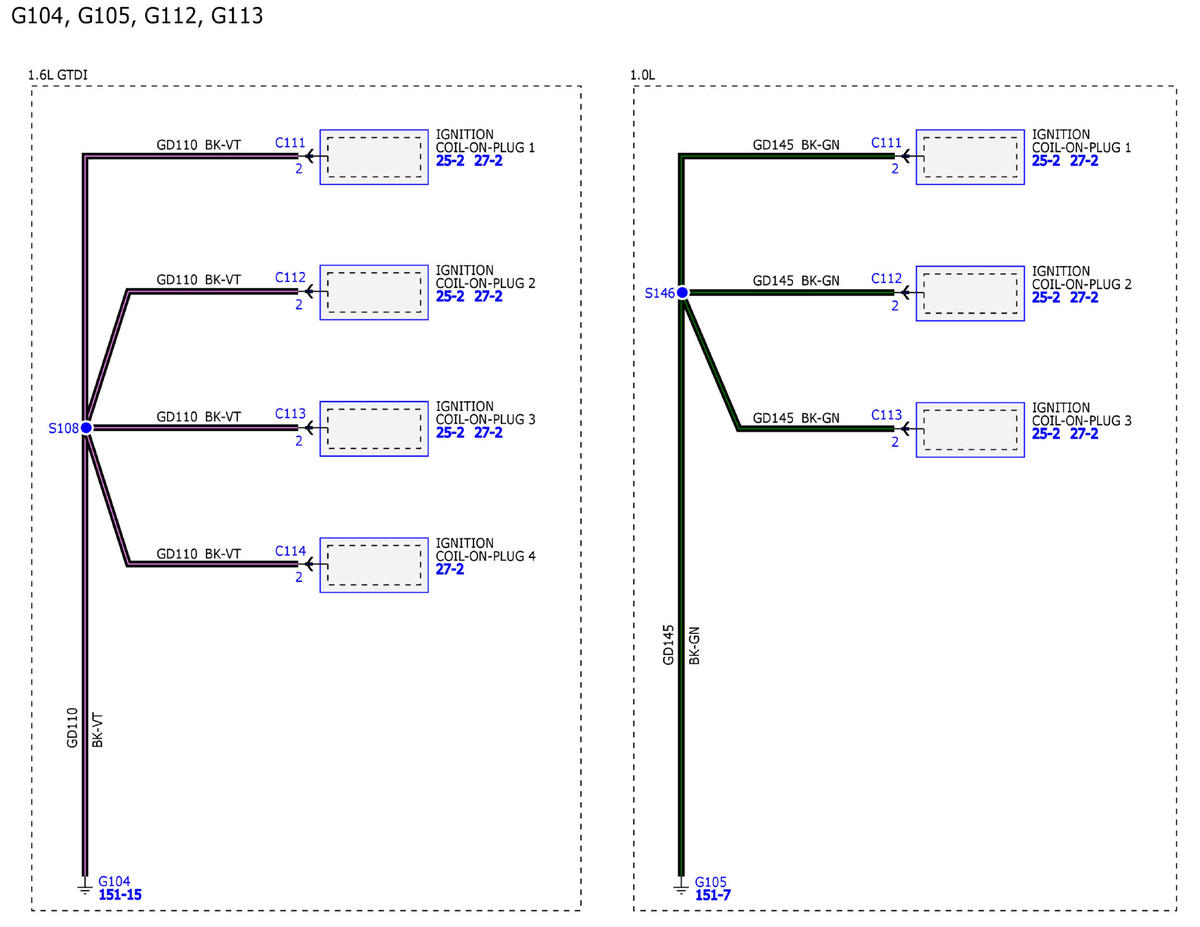

GFDW85673Courtesy of FORD MOTOR COMPANY

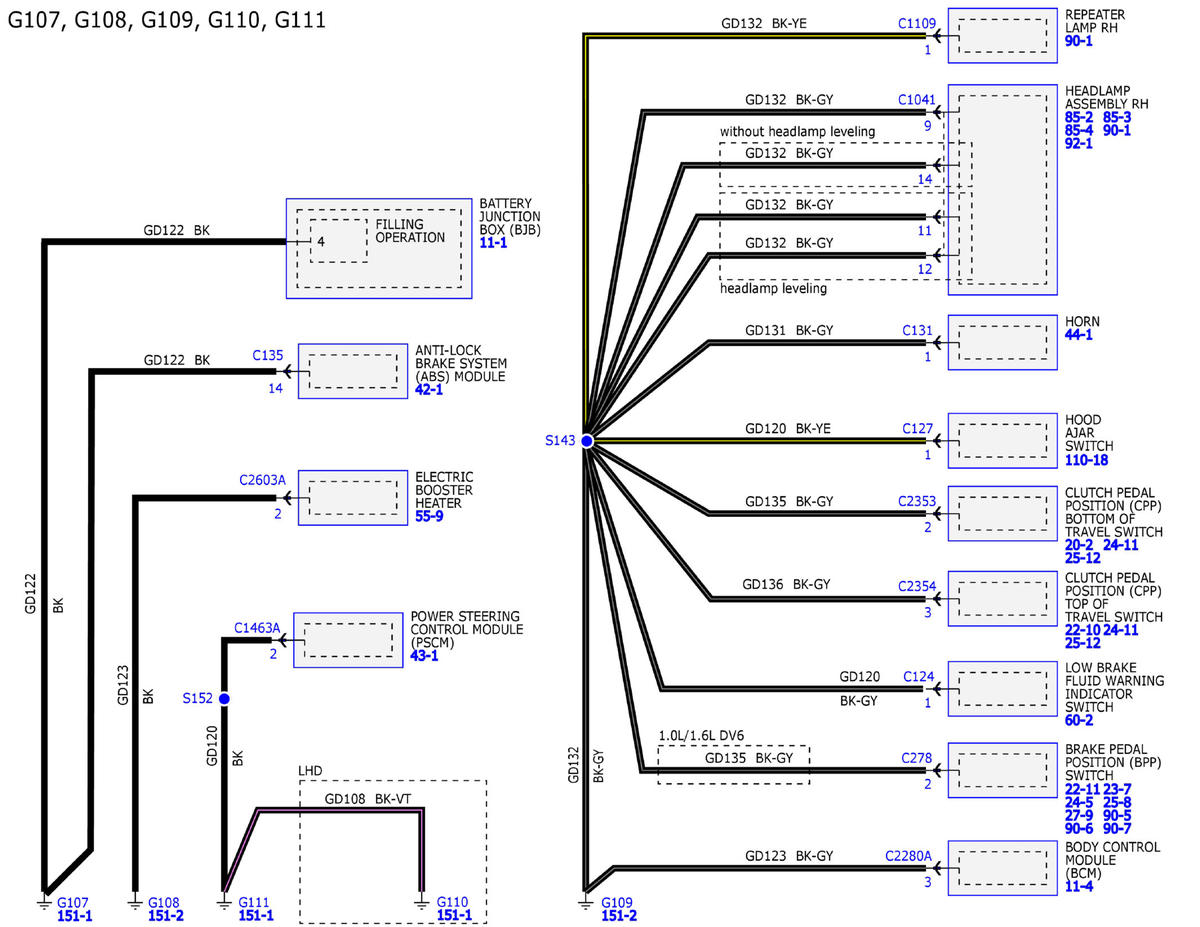

GFDW85674Courtesy of FORD MOTOR COMPANY

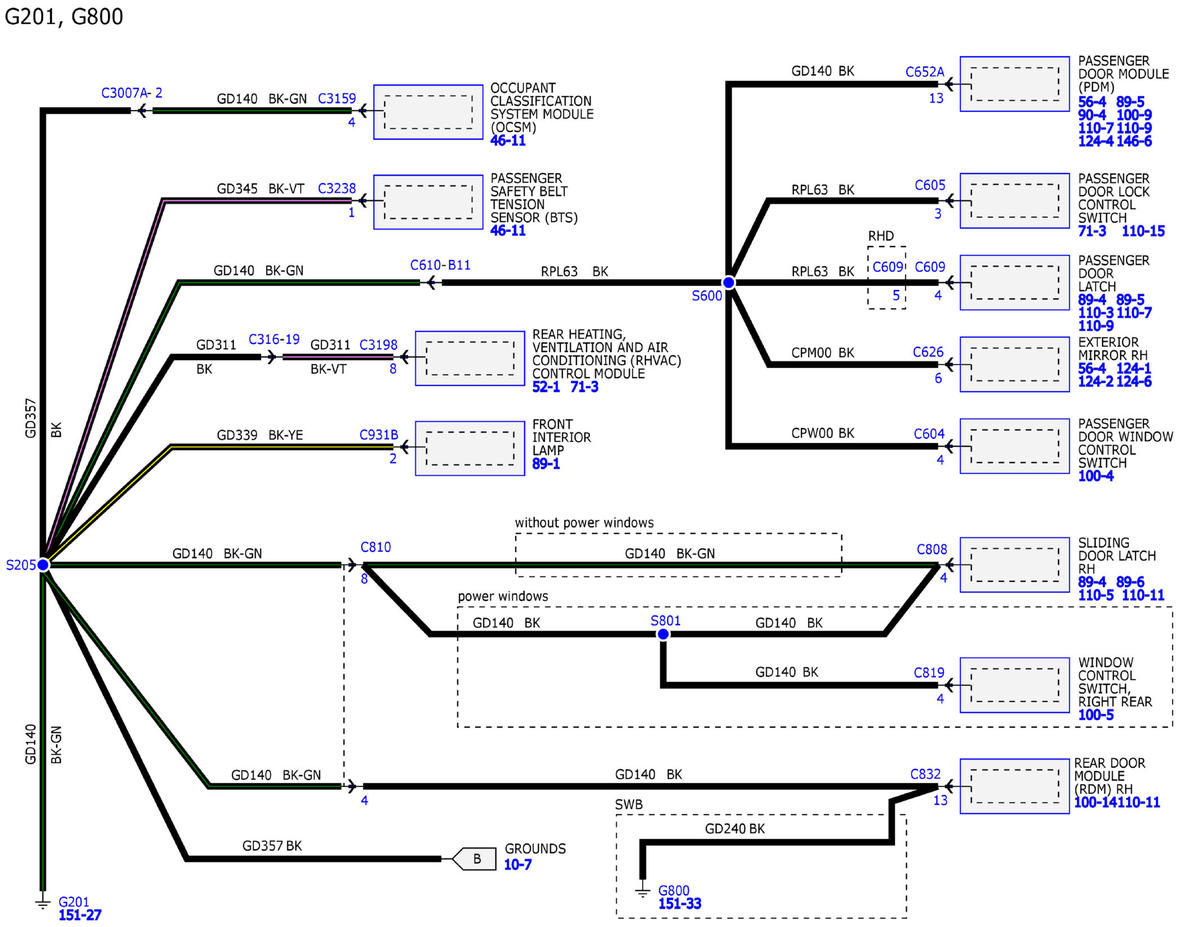

GFDW85675Courtesy of FORD MOTOR COMPANY

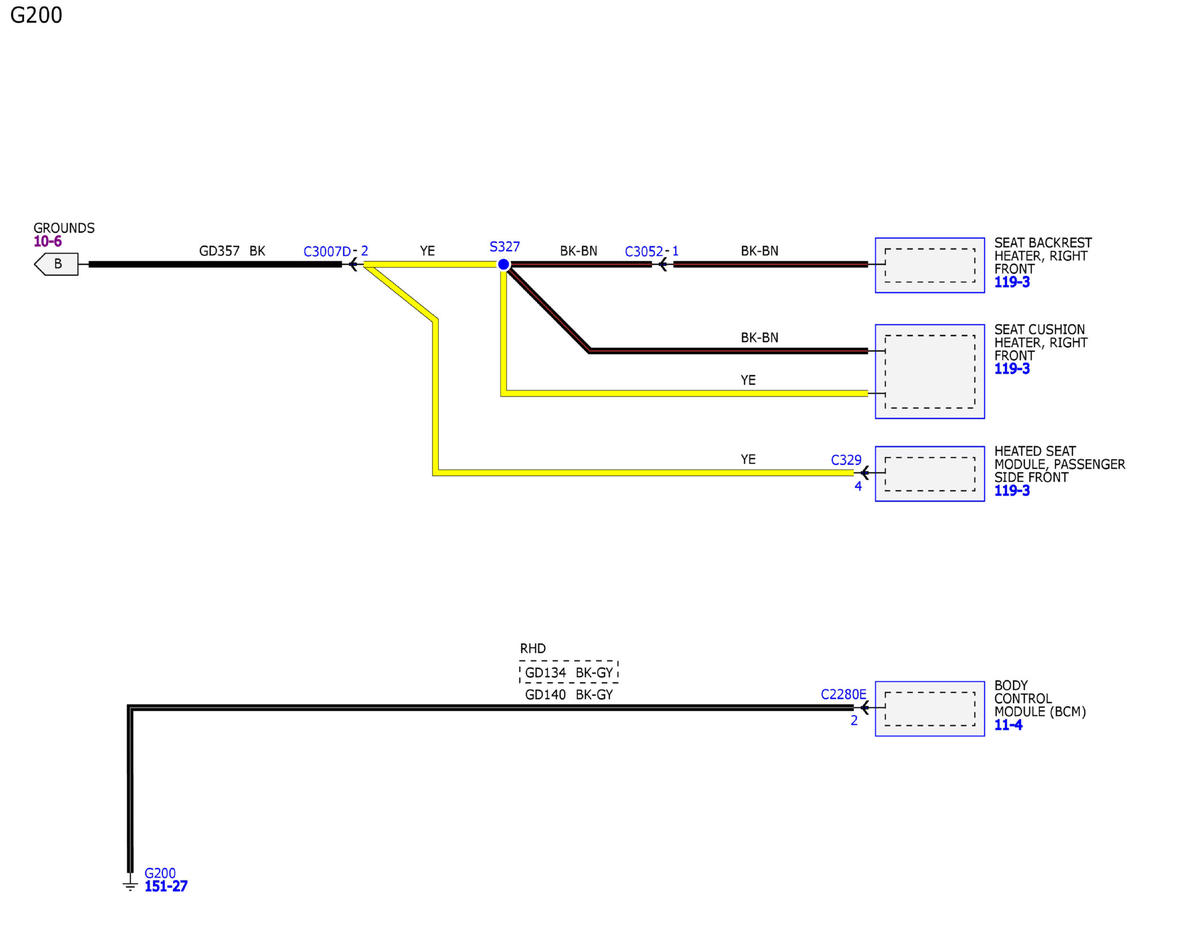

GFDW85676Courtesy of FORD MOTOR COMPANY

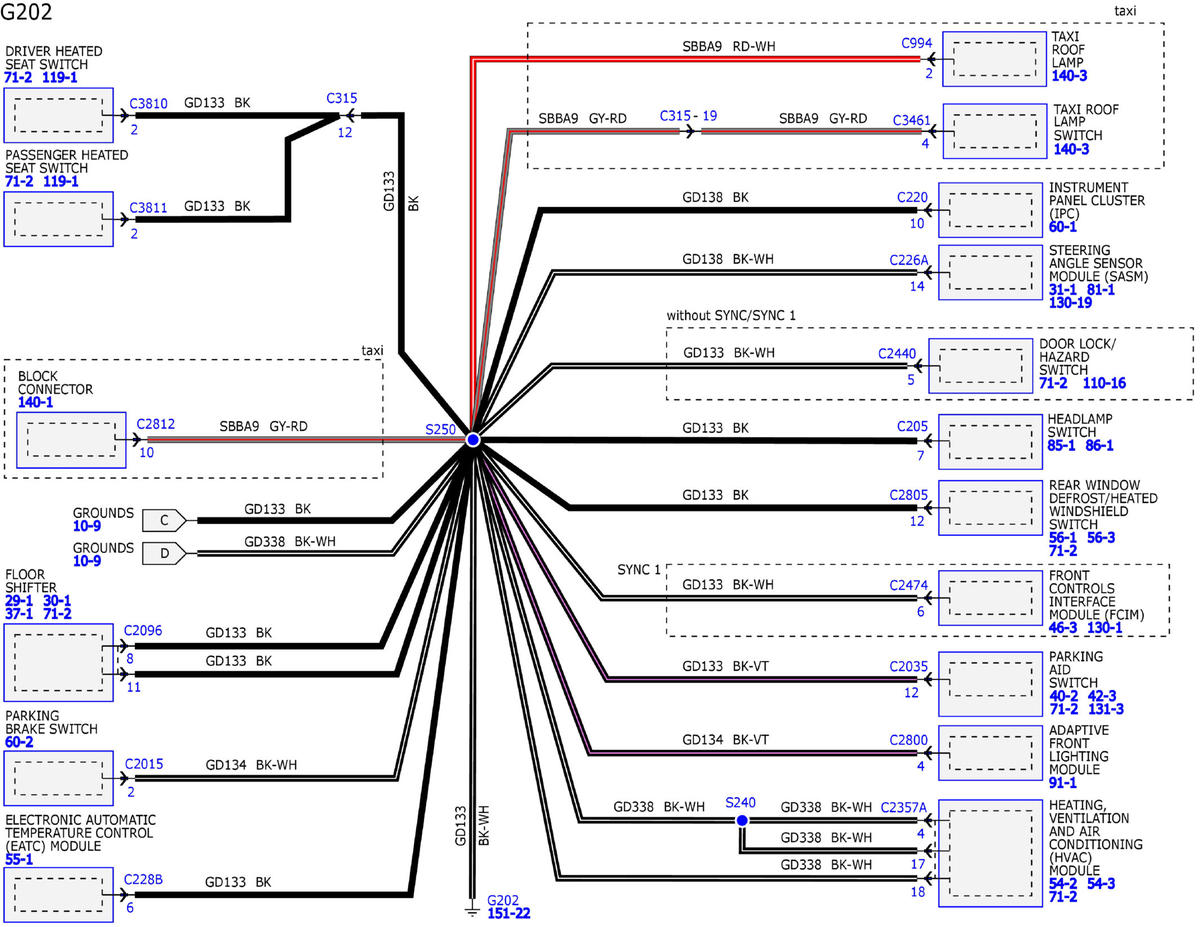

GFDW85677Courtesy of FORD MOTOR COMPANY

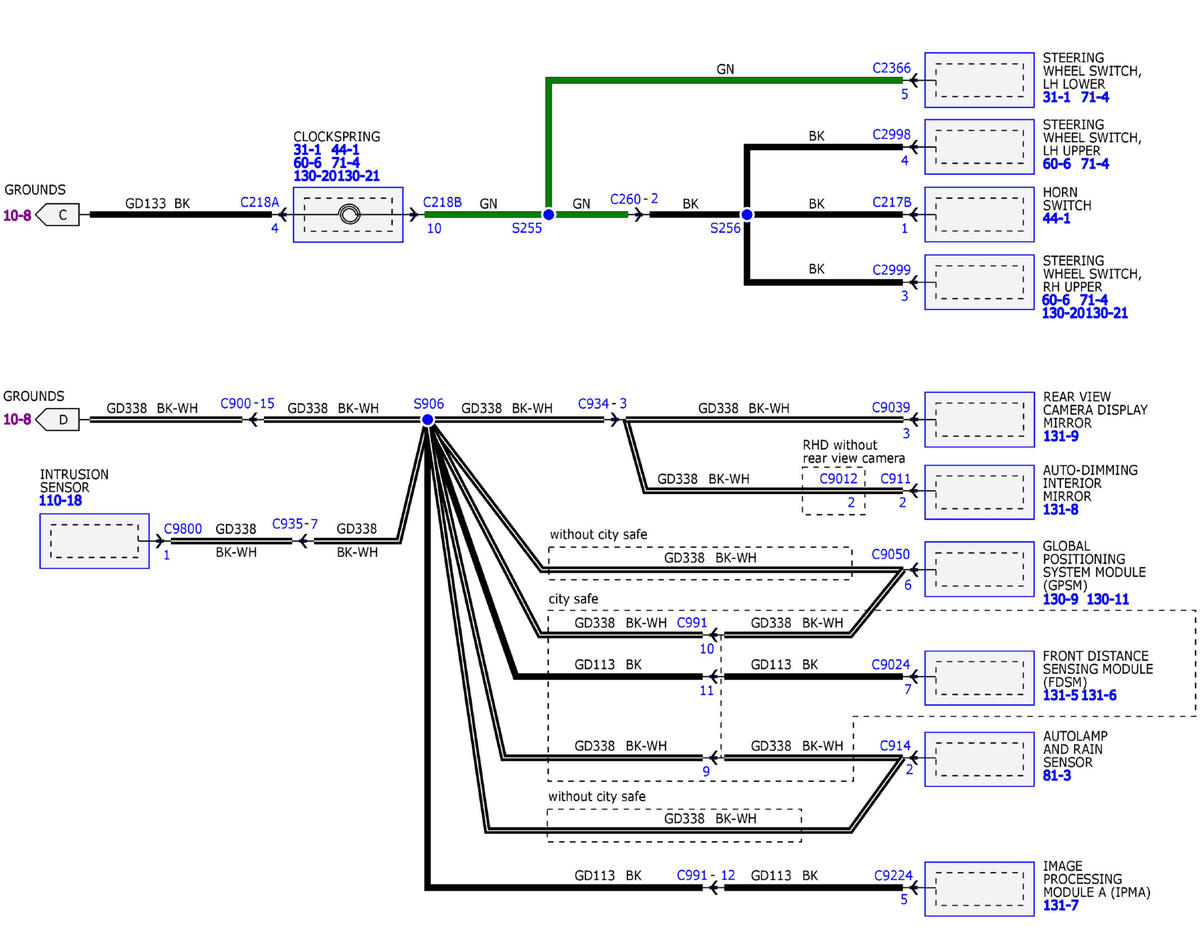

GFDW85678Courtesy of FORD MOTOR COMPANY

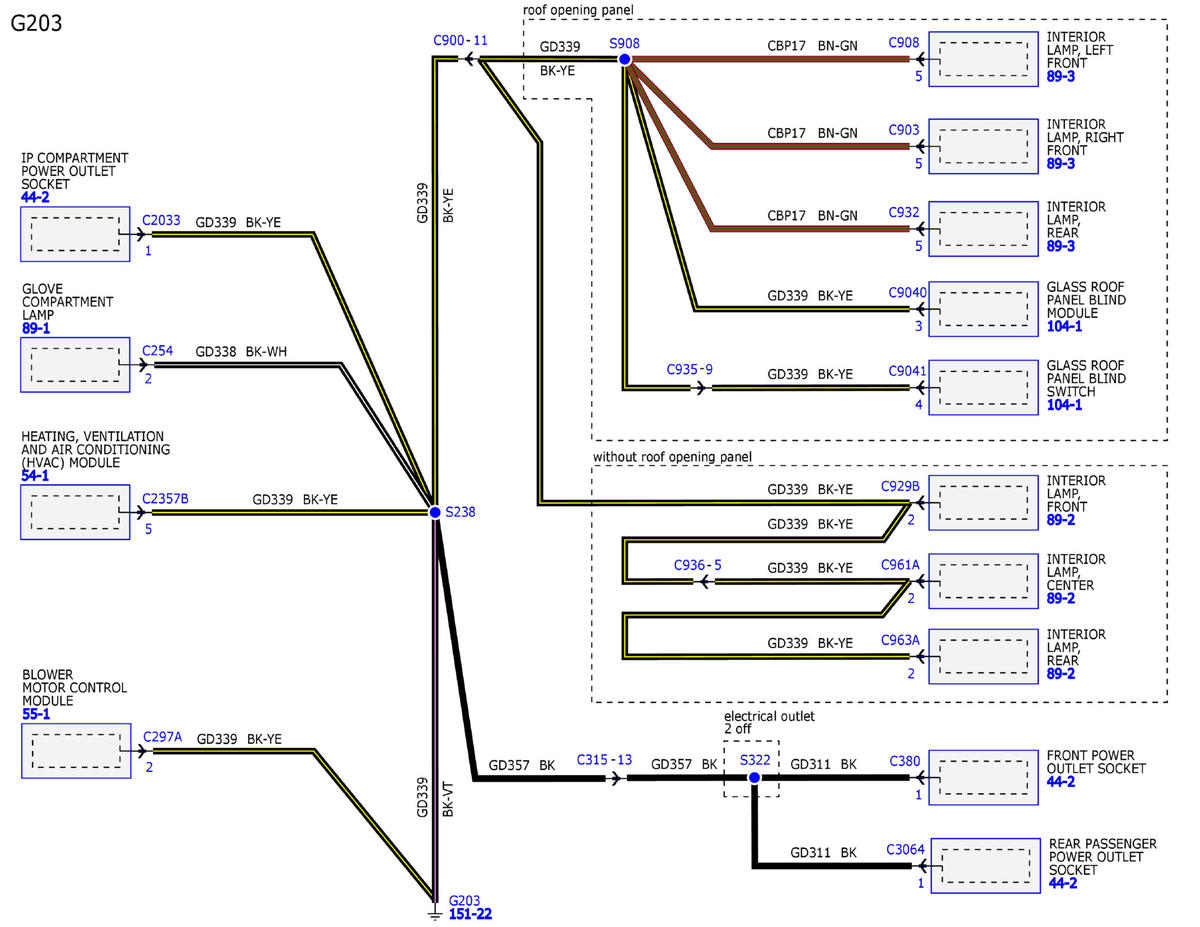

GFDW85679Courtesy of FORD MOTOR COMPANY
