Power Steering - Component Location: Notes

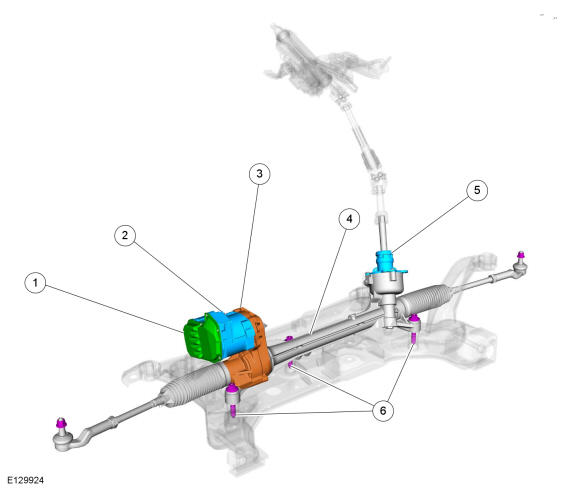

GFD214304Courtesy of FORD MOTOR COMPANY
Item Description
1 EPS module
2 EPS motor
3 Housing, steering assistance drive
4 Steering gear
5 Torsional shaft with steering torque sensor
6 Securing bolts, steering gear
