Selector Lever Knob: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Disengage the 4 retaining tabs and lift the selector lever bezel up and disconnect the electrical connectors.
    GFD215519Courtesy of FORD MOTOR COMPANY

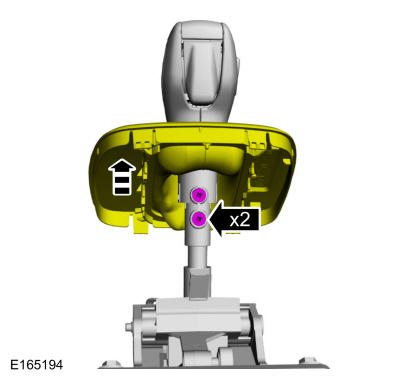

  2. Lift the selector lever bezel up and remove the retainers.
    GFD215537Courtesy of FORD MOTOR COMPANY

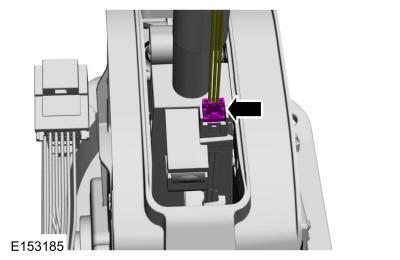

  3. Disconnect the selectshift switch electrical connector.
    GFD215538Courtesy of FORD MOTOR COMPANY

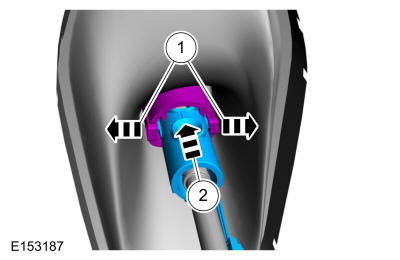

    1. Disengage the selector lever knob from the retaining tabs.
    2. Separate the selector lever knob from the selector lever bezel.
    GFD215539Courtesy of FORD MOTOR COMPANY

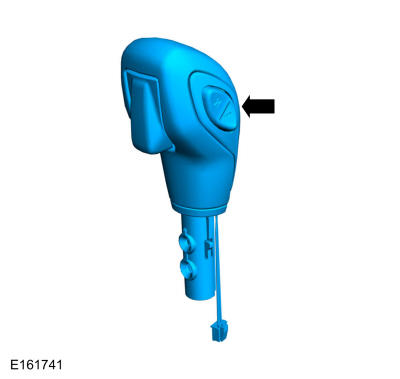

  5. Remove the selector lever knob.
GFD215540Courtesy of FORD MOTOR COMPANY
