Main Control Valve Body: Removal

  1. Remove the main control cover. Refer to: Main Control Cover .
  2. Disconnect the TR sensor electrical connector.
    GFD215082Courtesy of FORD MOTOR COMPANY
  3. Disconnect the OSS electrical connector.
    GFD215083Courtesy of FORD MOTOR COMPANY
  4. Remove the rubber grommet.
    GFD215084Courtesy of FORD MOTOR COMPANY
  5. NOTE: Take extra care when handling the components.
    NOTE: Note the different lengths of the bolts.

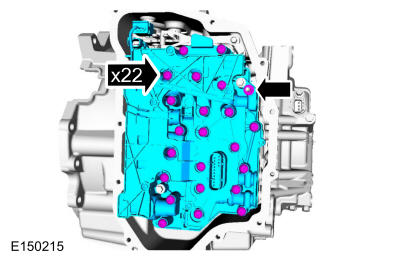

    Remove the nut, the bolts and the main control.

    GFD215085Courtesy of FORD MOTOR COMPANY

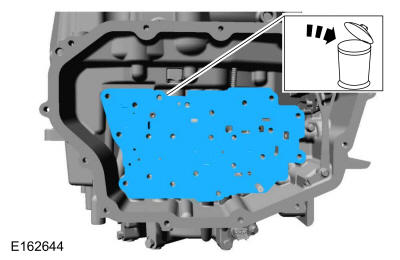

  6. Remove and discard the main control-to-transmission case separator plate.
    GFD215086Courtesy of FORD MOTOR COMPANY
  7. Remove the bolts and separate the solenoid body assembly from the main control valve body.
    GFD215087Courtesy of FORD MOTOR COMPANY

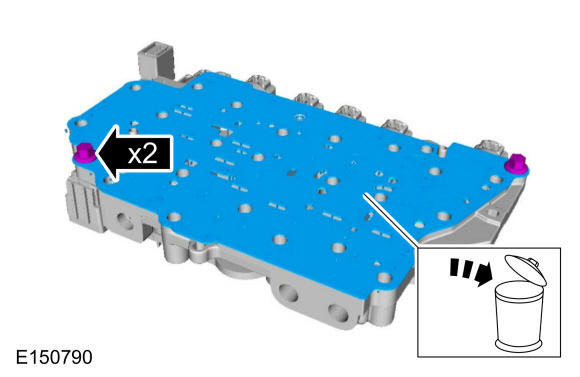

  8. Remove the 2 bolts and remove and discard the separator plate.
GFD215088Courtesy of FORD MOTOR COMPANY
