Solenoid Body: Installation
- Inspect and install the check balls and the solenoid damper.
-
NOTE: Make sure that a new component is installed.

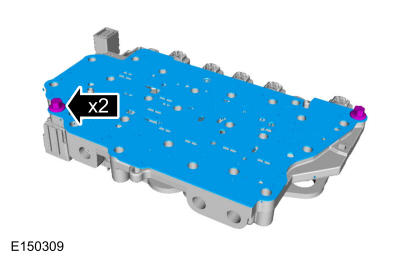

Install the new separator plate and the separator plate-to-solenoid body bolts.
Torque: 89 lb.in (10 Nm)

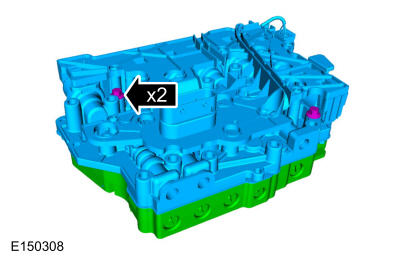

- Position the solenoid body on the main control valve body and install the solenoid body-to-valve body bolts.
Torque: 89 lb.in (10 Nm)
- Install the main control valve body. Refer to: Main Control Valve Body .
