Removal And Installation: Solenoid: Installation

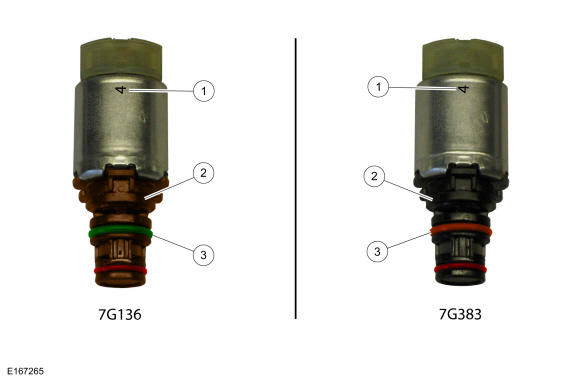

NOTE: Verify replacement component matches original component:
1. Number
2. Color
3. Color
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure the component is installed in the position noted before removal.

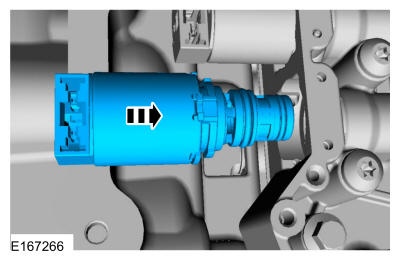

Install the solenoid(s) in the solenoid body.

Courtesy of FORD MOTOR COMPANY

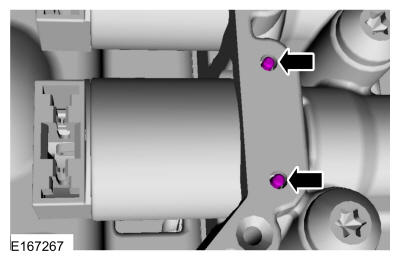

Install the solenoid retaining pin(s).

Courtesy of FORD MOTOR COMPANY
Install the transmission internal wiring harness frame. Refer to: Transmission Internal Wiring Harness Frame .
