Transmission Internal Wiring Harness Frame: Installation

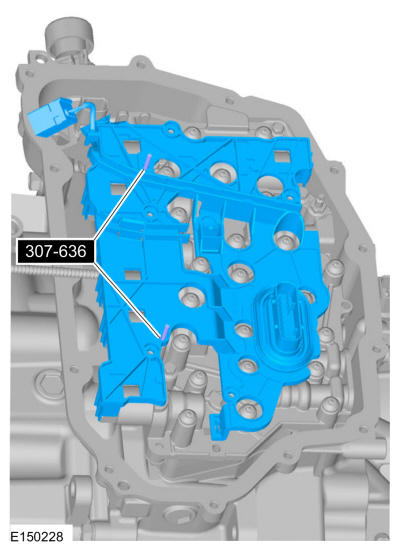

  1. Position the transmission internal wiring harness frame on the guide pins and carefully install the transmission internal wiring harness frame by pushing it straight down into the solenoids. Use Special Service Tool: 307-636 Alignment Pins- Valve Body.
    GFD215116Courtesy of FORD MOTOR COMPANY

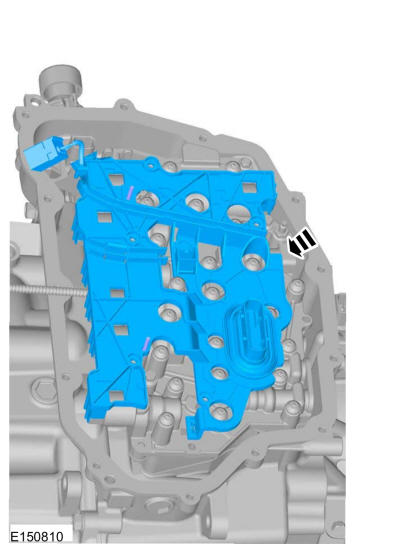

  2. Position and install the solenoid body assembly on the valve body.
    GFD215117Courtesy of FORD MOTOR COMPANY

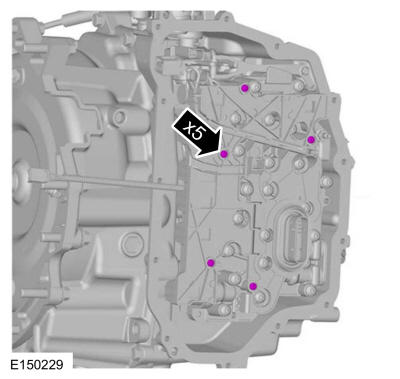

  3. Install the transmission internal wiring harness frame screws.

    Torque: 31 lb.in (3.5 Nm)

    GFD215118Courtesy of FORD MOTOR COMPANY

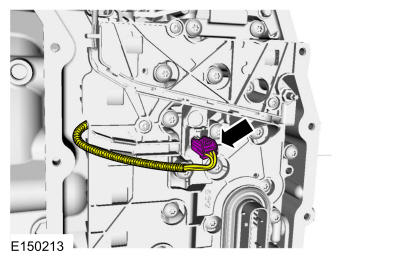

  4. Connect the OSS sensor electrical connector.
    GFD215113Courtesy of FORD MOTOR COMPANY
  5. Connect the TR sensor electrical connector.
    GFD215119Courtesy of FORD MOTOR COMPANY

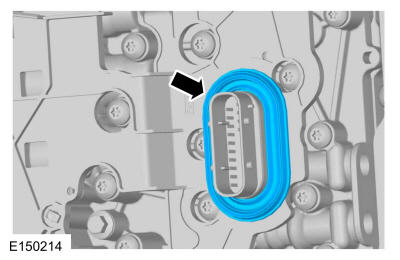

  6. Install the main control-to-cover seal.
    GFD215114Courtesy of FORD MOTOR COMPANY
  7. Install the main control cover. Refer to: Main Control Cover .
