Pinpoint Tests RG: REDUCTANT Pump: Introduction

NOTE: Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.

This pinpoint test is intended to diagnose the following:

reductant pump
reductant pump control module
harness circuits: RDPAP, RDPBP, RDPC, RDPCP, RDPGND, RDPM and VPWR
reductant dosage control module (5H298)
PCM (12A650)

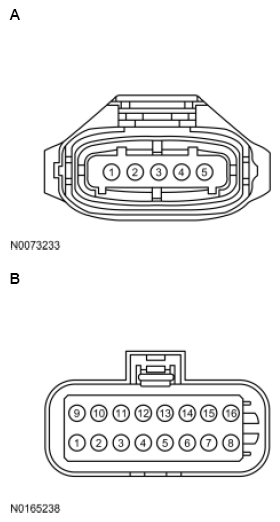

Fig 1: Reductant Pump Assembly Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Transit	A	4 3 5	GND VPWR RDPC
All other vehicles	B	16 8 7 15	RDPCP RDPBP RDPAP GND

Fig 2: Reductant Pump Control Module Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
7	RDPCP (Reductant Pump C Phase)
2	RDPBP (Reductant Pump B Phase)
6	RDPAP (Reductant Pump A Phase)
3	RDPM (Reductant Pump Monitor)
4	RDPC (Reductant Pump Control)
1	GND (Ground)
5	VPWR (Vehicle Power)

Fig 3: Reductant Dosage Control Module Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
69	RDPGND (Reductant Pump Ground)
67	RDPC (Reductant Pump Control)

Fig 4: Powertrain Control Module-T (PCM-T) Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
29	RDPM (Reductant Pump Monitor)
23	RDPC (Reductant Pump Control)
