Pinpoint Tests RH: REDUCTANT Heater: Introduction

NOTE: Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.

This pinpoint test is intended to diagnose the following:

reductant heaters
harness circuits: GND, RDHTRC1, RDHTRC2, RDHTRC3 and RDHTRPWR
glow plug control module (GPCM)
reductant dosage control module (5H298)

Fig 1: Reductant Heater And Sender Assembly Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
2	GND (Ground)
1	RDHTRC1 (Reductant Heater Control 1)

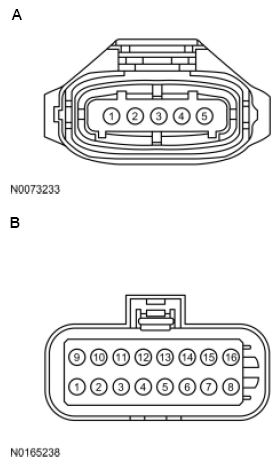

Fig 2: Reductant Pump Assembly Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Transit	A	2 1	RDHTRC2 GND
All other vehicles	B	11 9	GND RDHTRC1

Fig 3: Reductant Pressure Line Heater Assembly Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Transit	A	1 2	RDHTRC3 GND
All other vehicles	A	2 1	GND RDHTRC2

Fig 4: Reductant Heater Relay Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Transit	A	2 5 1 3	RDHTRCTRL RDHTRPWR GND B+
All other vehicles	A	1 5 2 3	RDHTRCTRL RDHTRPWR GND B+

Fig 5: Glow Plug Control Module-C (GPCM-C) Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
13	RDHTRC2 (Reductant Heater Control 2)
15	RDHTRC1 (Reductant Heater Control 1)
2	RDHTRCTRL (Reductant Heater Control)
16	RDHTRPWR (Reductant Heater Power)

Fig 6: Reductant Dosage Control Module Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
6	RDHTRC3 (Reductant Heater Control 3)
2	RDHTRC2 (Reductant Heater Control 2)
4	RDHTRC1 (Reductant Heater Control 1)
