Pinpoint Tests RK: REDUCTANT Injector: Introduction

Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.

This pinpoint test is intended to diagnose the following:

reductant injector
reductant pump
harness circuits: RDINJPWR and RDINJGND
reductant dosage control module (5H298)
PCM (12A650)

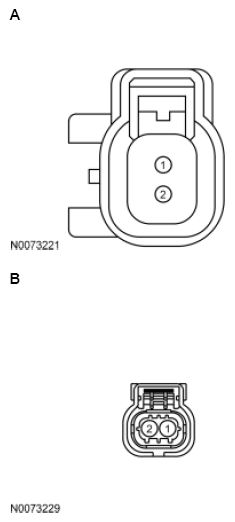

Fig 1: Reductant Injector Solenoid Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
F-Series Super Duty	A	1 2	RDINJGND RDINJPWR
Transit	B	2 1	RDINJGND RDINJPWR
All other vehicles	A	2 1	RDINJGND RDINJPWR

Fig 2: Reductant Dosage Control Module Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
91	RDINJGND (Reductant Injector Ground)
74	RDINJPWR (Reductant Injector Power)

Fig 3: Powertrain Control Module-T (PCM-T) Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
14	RDINJGND (Reductant Injector Ground)
21	RDINJPWR (Reductant Injector Power)
