All-Wheel Drive (AWD) Module: Removal

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

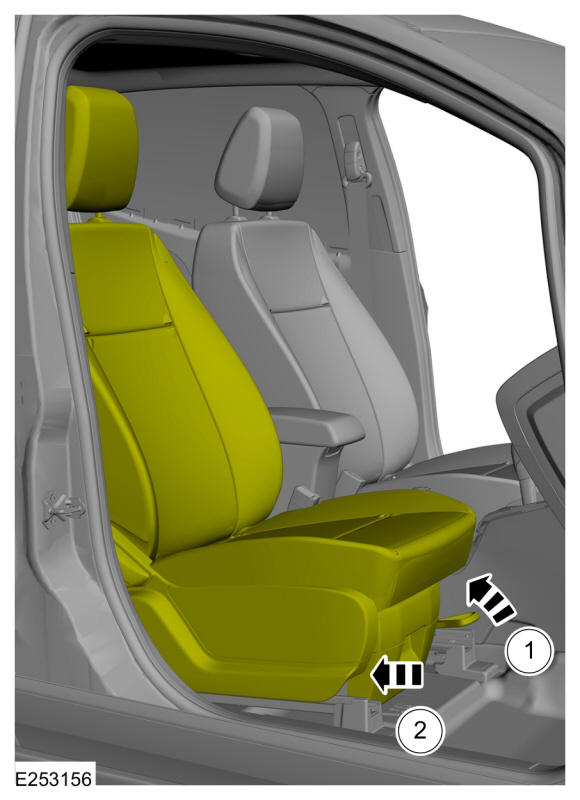

1. Pull the seat adjustment lever up to reposition the RH (right hand) front seat.
2. Position the RH front seat in the fully rearward position.
Courtesy of FORD MOTOR COMPANY

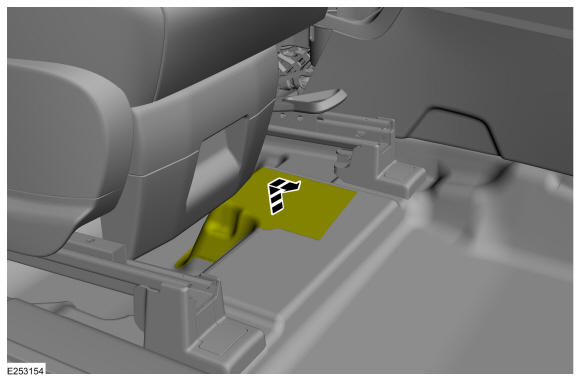

NOTE: Detach the access cover from the main floor trim and position it aside.

Courtesy of FORD MOTOR COMPANY

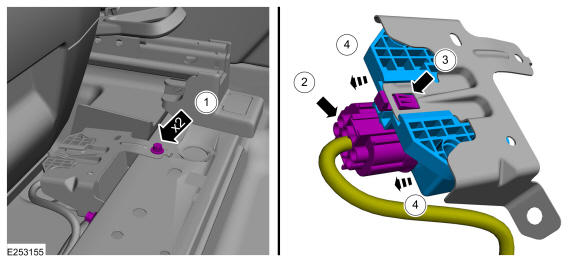

1. Remove the 2 bolts.
  Torque: 35 lb.in (4 Nm)
2. Disconnect the AWD relay module electrical connector.
3. Lift the AWD module release tab (away from the AWD module bracket)
4. Slide the AWD module out of the bracket and remove.
