Front Seat Track Motor: Installation

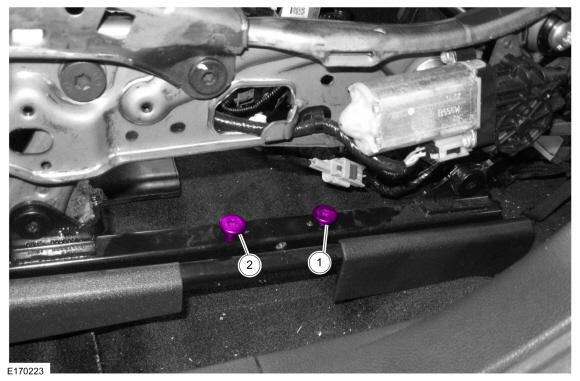

  1. NOTE: Use the bolts from the old motor and bracket assembly.

    On both sides. Install the front seat track motor bolts.

    Torque

    : 21 lb.ft (28 Nm)

    GFD257391Courtesy of FORD MOTOR COMPANY
  2. NOTE: When using a drill to move the seat track, do not move the seat track to its forward or rearward end of travel stops, otherwise a new seat track must be installed.
    NOTE: Be sure to drive the seat track evenly or the track will bind during movement.
    NOTE: Rotate the cables using 2 drills operating at similar speeds to most efficiently position seat track.

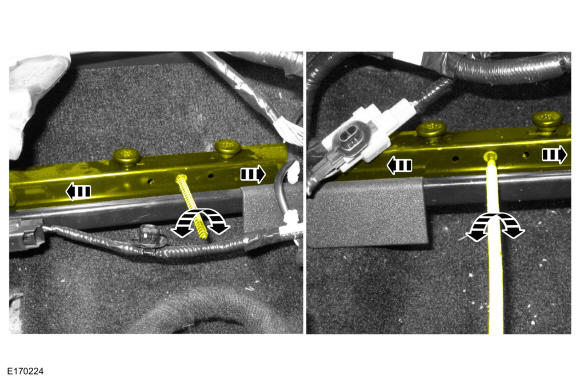

    Insert the original seat track motor cables and drive the gearbox and seat track uniformly until the rear edge of the upper and lower seat tracks are flush. Use the General Equipment: Electric Drill

    GFD257392Courtesy of FORD MOTOR COMPANY

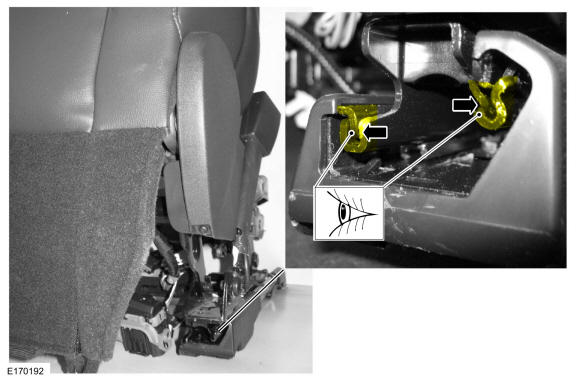

  3. The rear edges of the upper and lower seat track rails must align with each other on both sides.
    GFD257393Courtesy of FORD MOTOR COMPANY

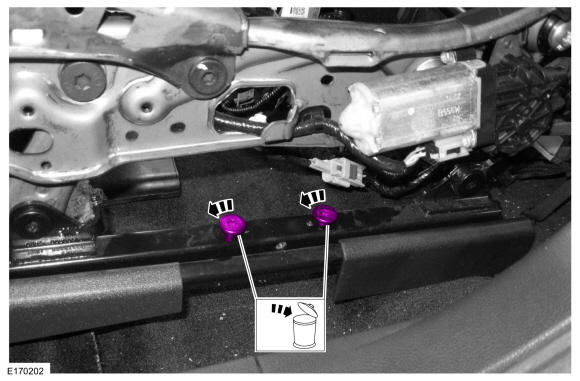

  4. On both sides. Remove and discard the front seat track motor bolts.
    GFD257394Courtesy of FORD MOTOR COMPANY

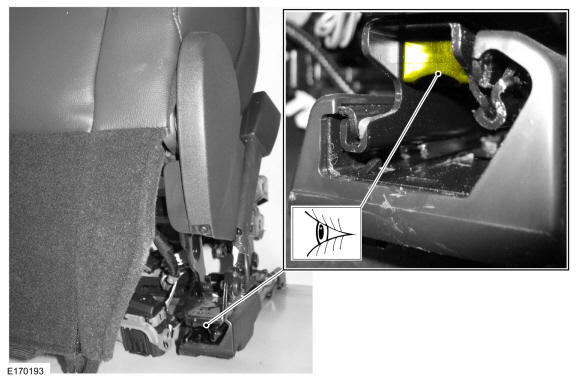

  5. NOTE: Install a new seat track if the block is not in place.

    Verify that the block is in place at the rear of the inboard seat track.

    GFD257395Courtesy of FORD MOTOR COMPANY

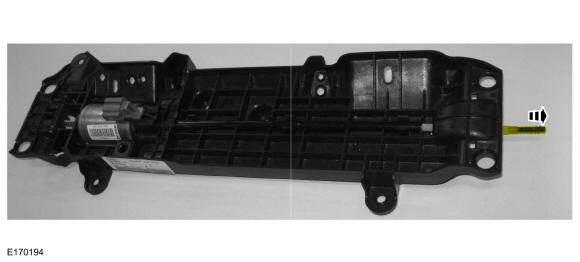

  6. Pull the long cable on the new motor assembly out of the sheathing, as shown, to aid installation.
    GFD257396Courtesy of FORD MOTOR COMPANY

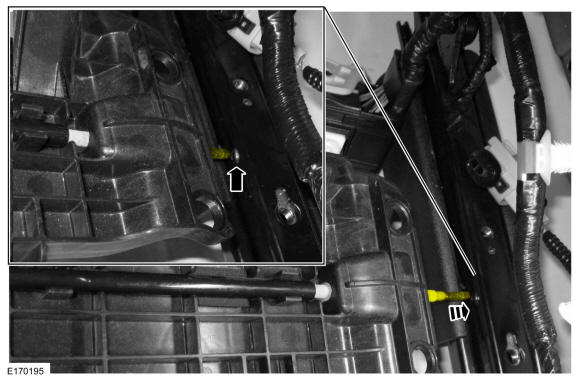

  7. Reposition the front seat track motor drive cable and the front seat track motor into the front seat track.
    GFD257397Courtesy of FORD MOTOR COMPANY

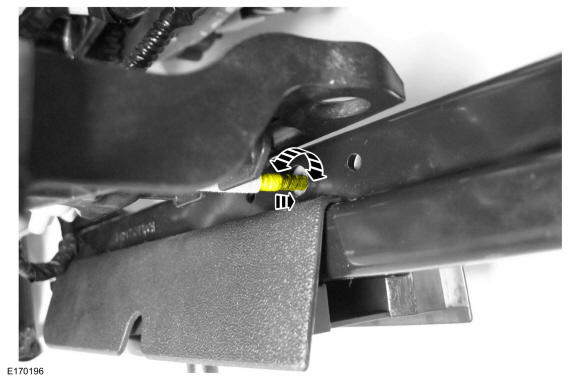

  8. Reposition the front seat track motor drive cable into the front seat track drive.
    GFD257398Courtesy of FORD MOTOR COMPANY

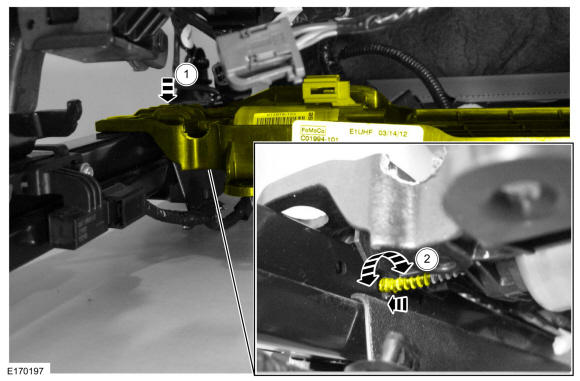

  9. NOTE: Do not severely bend the short cable during installation or damage to the cable will occur.

    1. Reposition the front seat track motor.
    2. Position seat track drive cable into the front seat track and drive.

    GFD257399Courtesy of FORD MOTOR COMPANY
  10. NOTE: Do not cross-thread the bolts as they are load bearing. If the bolts are cross-threaded, a new seat track must be installed.

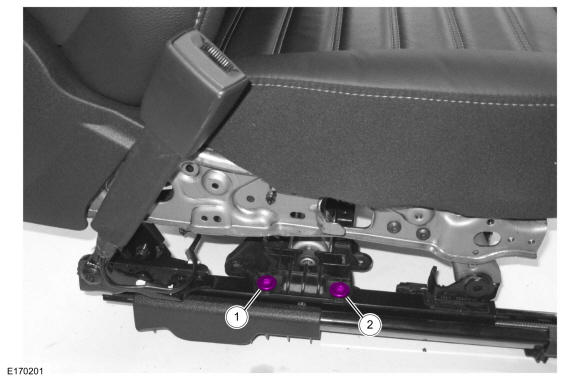

    On both sides. Install the new front seat track motor bolts.

    Torque

    : 21 lb.ft (28 Nm)

    GFD257400Courtesy of FORD MOTOR COMPANY

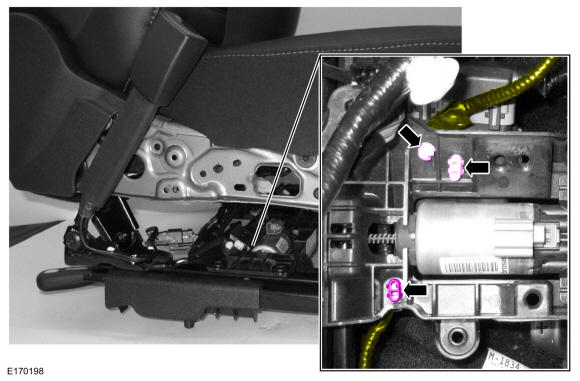

  11. Reposition the wire harness and secure the retainers.
    GFD257389Courtesy of FORD MOTOR COMPANY
  12. Connect the front seat track motor electrical connector, reposition the wire harness and secure the retainer.

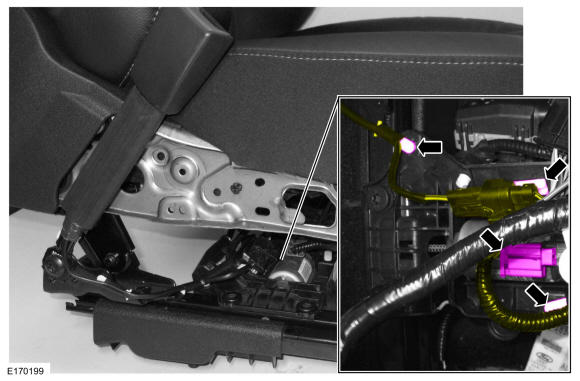

    GFD257388Courtesy of FORD MOTOR COMPANY

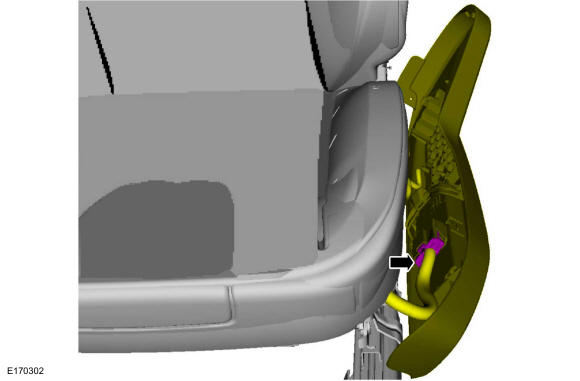

  13. Position the side shield and connect the front seat control switch electrical connector.
    GFD257401Courtesy of FORD MOTOR COMPANY

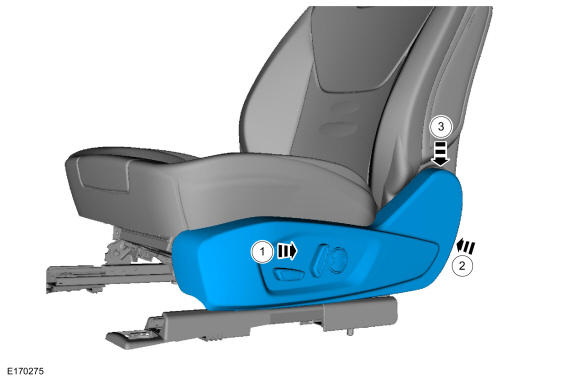

    1. Position the side shield into the front seat track and slide rearward to engage into the bracket.
    2. Lift the rear of the side shield upward slightly.
    3. Install the side shield into correct position and push downward to engage the locking tabs.
    GFD257402Courtesy of FORD MOTOR COMPANY
  15. Install the side shield screws.
    GFD257354Courtesy of FORD MOTOR COMPANY
  16. Install the front seat. Refer to: Front Seat  .

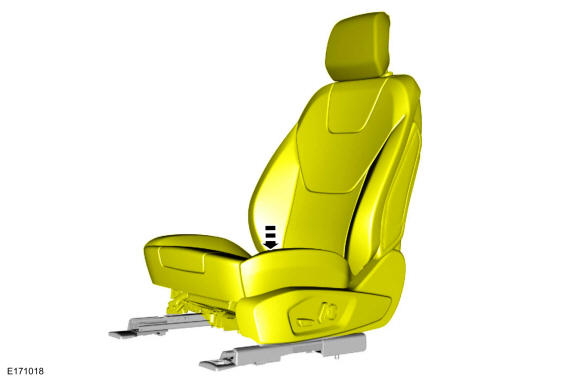

  17. Position the front seat to the downward location.
    GFD257403Courtesy of FORD MOTOR COMPANY

    Vehicles with memory seats

  18. Operate the horizontal seat motor in both directions through the full range of travel to set soft stops and avoid a premature stopping point occurrence after the vehicle is returned to the customer.
