Driver Front Seat Module (DSM): Removal
NOTE:
LHD driver seat shown, RHD driver seat similar.
- Position the driver front seat to the full rearward and full upward position.
 Courtesy of FORD MOTOR COMPANY
|

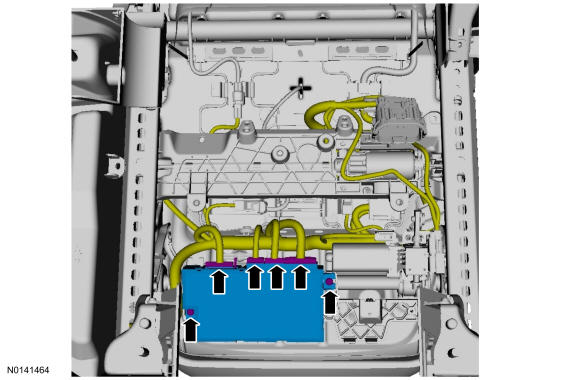

- Disconnect the DSM electrical connectors, remove the screws and the DSM.
 Courtesy of FORD MOTOR COMPANY
|
