Front Seat Backrest: Installation

All seats

1. To install, reverse the removal procedure

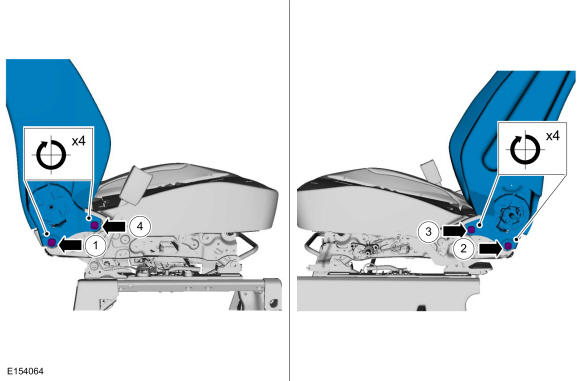

2. 1. Install retainer and hand tighten clockwise 4 turns.
   2. Install retainer and hand tighten clockwise 4 turns.
   3. Install retainer and hand tighten clockwise 4 turns.
   4. Install retainer and hand tighten clockwise 4 turns.

   Courtesy of FORD MOTOR COMPANY

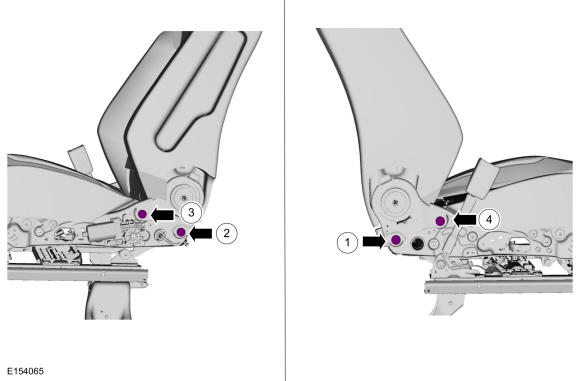

3. 1. Tighten the bolt.

      Torque

      : 33 lb.ft (45 Nm)

   2. Tighten the bolt.

      Torque

      : 33 lb.ft (45 Nm)

   3. Tighten the bolt.

      Torque

      : 33 lb.ft (45 Nm)

   4. Tighten the bolt.

      Torque

      : 33 lb.ft (45 Nm)

   Courtesy of FORD MOTOR COMPANY

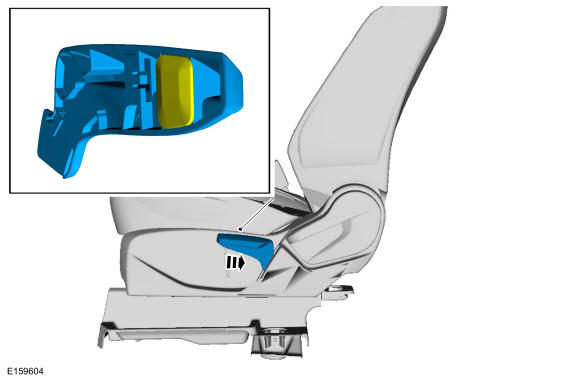

4. NOTE: Before installing the height adjust handle, check that the cap is positioned correctly.

   Install the height adjust handle.

   Courtesy of FORD MOTOR COMPANY

5. Install the front seat. Refer to: Front Seat  .

   Driver seat

6. NOTE: This step is only necessary when installing a new seat backrest frame with memory seat option.

   Operate the seat backrest in both directions through the full range of travel to set soft stops and avoid a premature stopping point occurrence after the vehicle is returned to the customer.
