Front Seat Backrest: Removal

NOTE: Power driver seat shown, other seats similar.

NOTE: Removal steps in this procedure may contain installation details.

Remove the front seat. Refer to: Front Seat .
Manual seats
- NOTE: Follow the unique instructions or graphic for this step in installation.

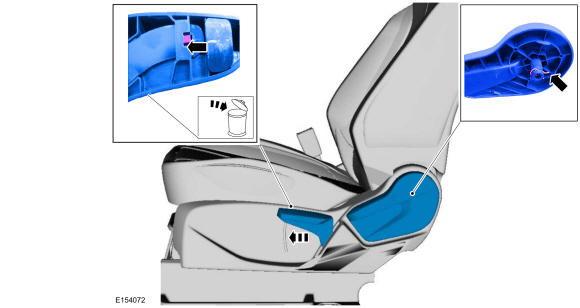

  If equipped. Release the locking tab, remove and discard the height adjust handle.
- Remove the clip and the recline handle.
Courtesy of FORD MOTOR COMPANY

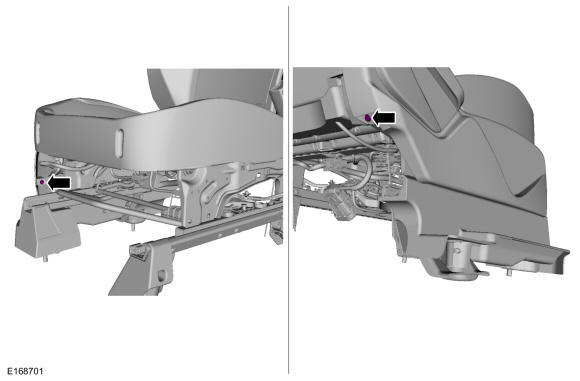

Remove the side shield screws.

Courtesy of FORD MOTOR COMPANY

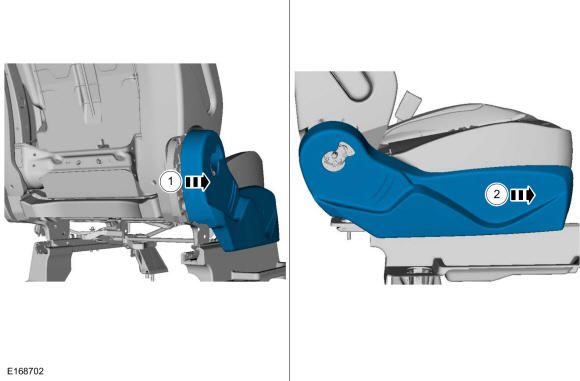

1. Release the side shield from the recliner.
2. Slide the side shield forward and release it from the seat track.
Courtesy of FORD MOTOR COMPANY

Power seats
Remove the side shield screws.

Courtesy of FORD MOTOR COMPANY
1. Release the side shield from the recliner.
2. Slide the side shield forward and release it from the seat track.
Courtesy of FORD MOTOR COMPANY
1. Disconnect the seat switch electrical connector.
2. Remove the side shield.
Courtesy of FORD MOTOR COMPANY

All seats

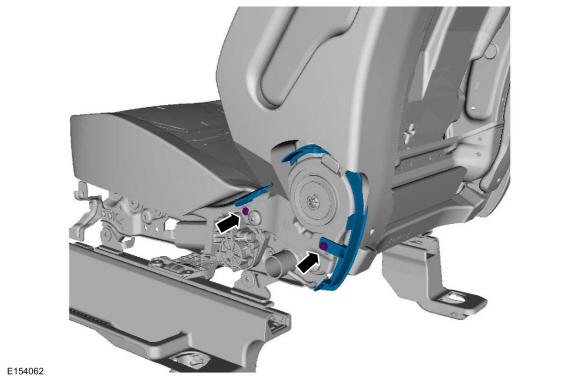

Remove the screws and the recline cover.

Courtesy of FORD MOTOR COMPANY

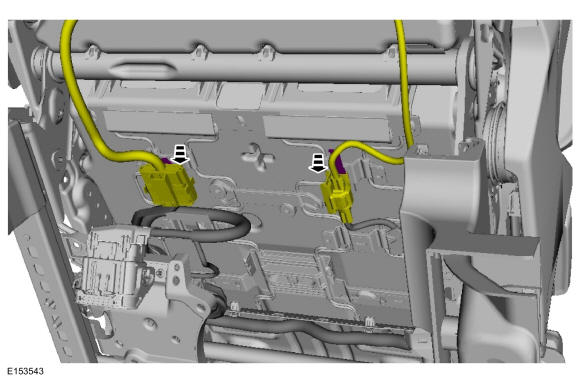

Disconnect the electrical connectors, release the connector pin-type retainers and position the wire harnesses aside.

Courtesy of FORD MOTOR COMPANY

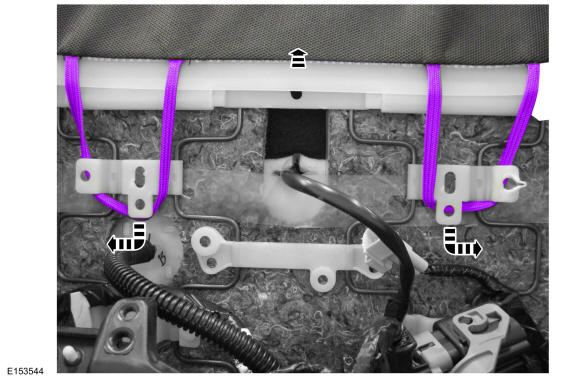

Detach the backrest cover straps and position the backrest cover upward.

Courtesy of FORD MOTOR COMPANY

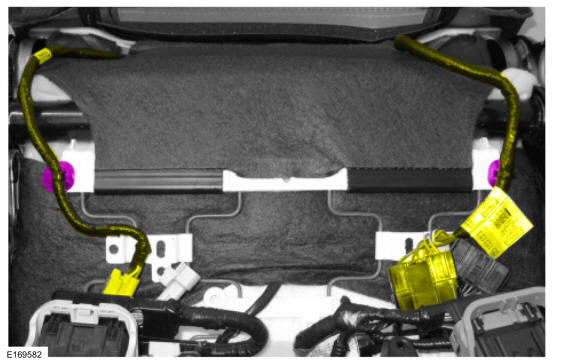

Release the wire harness retainer(s) from the seat track.

Courtesy of FORD MOTOR COMPANY

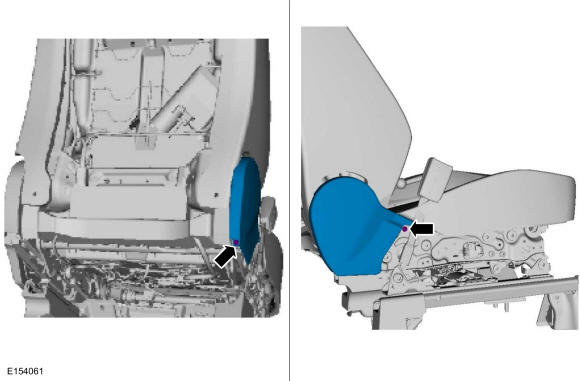

Remove the screws and the inner side shield.

Courtesy of FORD MOTOR COMPANY
NOTE: Follow the unique instructions or graphic for this step in installation.

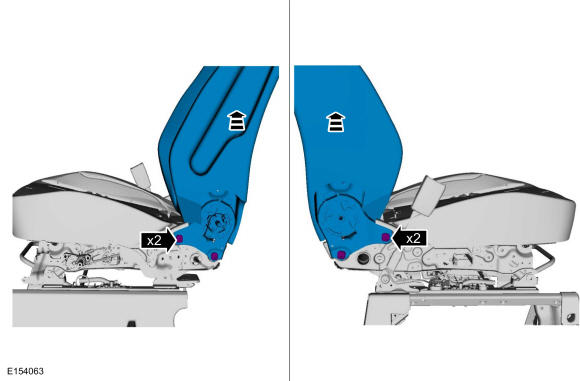

Remove the bolts and the backrest.

Courtesy of FORD MOTOR COMPANY
