Rear Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.
NOTE: FWD vehicle shown in illustration, AWD vehicles similar.

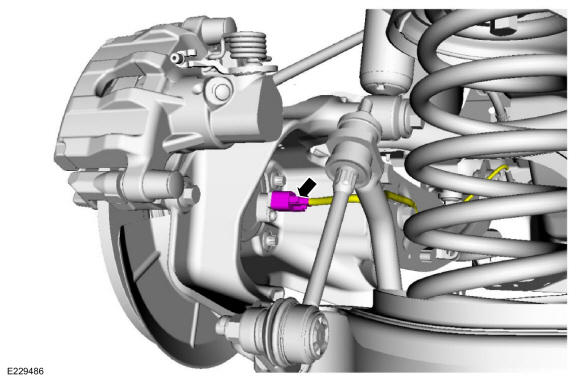

  1. Disconnect the electrical connector.
    GFD253092Courtesy of FORD MOTOR COMPANY

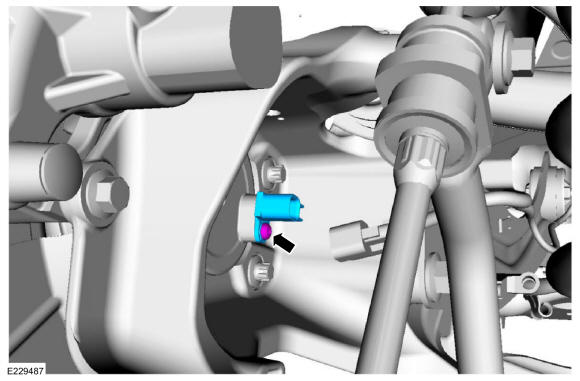

  2. Remove the bolt and the rear wheel speed sensor.

    Torque

    : 42 lb.in (4.8 Nm)

GFD253093Courtesy of FORD MOTOR COMPANY
