Selector Lever Knob: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Position the selector lever in S.
    GFD256314Courtesy of FORD MOTOR COMPANY

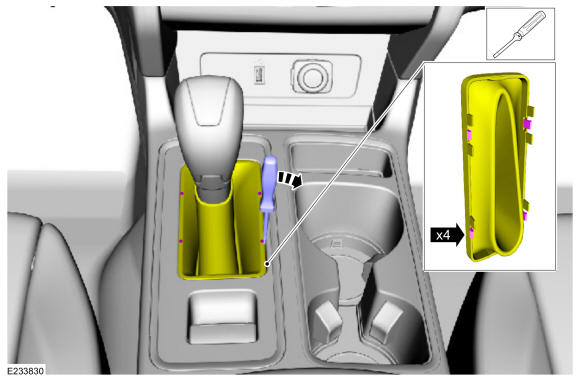

  2. Using a small screwdriver, pry the selector lever boot clips away from the selector lever bezel and position the boot aside.
    GFD256286Courtesy of FORD MOTOR COMPANY

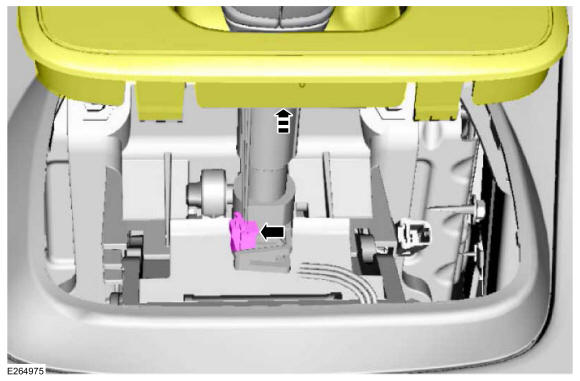

  3. If equipped.If equipped, disconnect the SelectShift™ switch electrical connector.
    GFD256340Courtesy of FORD MOTOR COMPANY

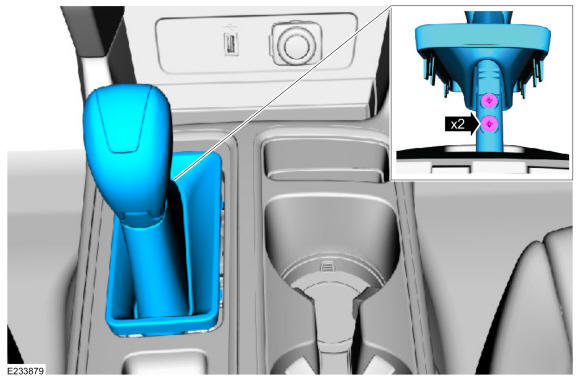

  4. Lift the boot, remove the screws and remove the boot and knob as an assembly.
    GFD256341Courtesy of FORD MOTOR COMPANY

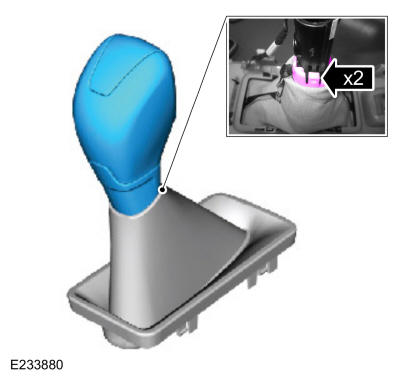

  5. Release the tabs on the selector lever boot and remove the selector lever knob from the selector lever boot.
GFD256342Courtesy of FORD MOTOR COMPANY
