Upshift Paddle Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the RH steering wheel multifunction switch. REFER to: Steering Wheel Multifunction Switch .

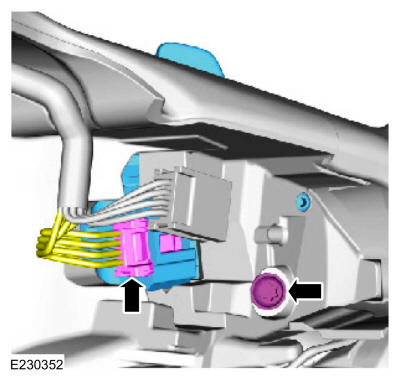

  2. Disconnect the electrical connector, remove the screw and remove the upshift paddle switch.
GFD256343Courtesy of FORD MOTOR COMPANY
