Transfer Case Vent: Installation

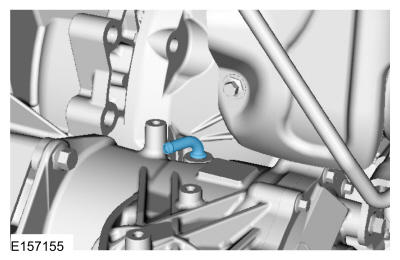

  1. Install a new PTU vent.
    GFD256377Courtesy of FORD MOTOR COMPANY

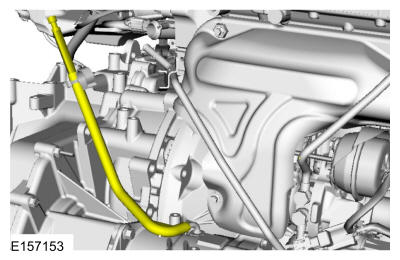

  2. Connect the PTU vent hose.
GFD256375Courtesy of FORD MOTOR COMPANY
