Front Seat: Installation

  1. To install, reverse the removal procedure.
    1. Install the front inboard bolt.

      Torque

      : 41 lb.ft (55 Nm)

    2. Install the front outboard bolt.

      Torque

      : 41 lb.ft (55 Nm)

    3. Install the rear inboard bolt.

      Torque

      : 41 lb.ft (55 Nm)

    4. Install the rear outboard bolt.

      Torque

      : 41 lb.ft (55 Nm)

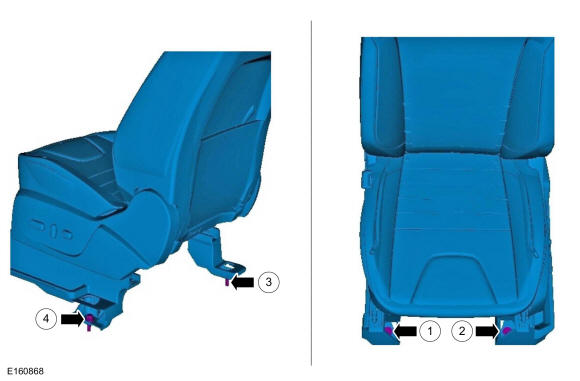

    GFD257348Courtesy of FORD MOTOR COMPANY
  2. If the SRS was depowered, repower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering and Repowering .
