Brake Shift Interlock Override Switch: Removal

For information on Ford Color Coded Illustrations refer toOEM Color Coding

1. Open the console door.

   Courtesy of FORD MOTOR COMPANY

2. Detach the console cover, disconnect the electrical connectors and remove the console cover.

   Courtesy of FORD MOTOR COMPANY

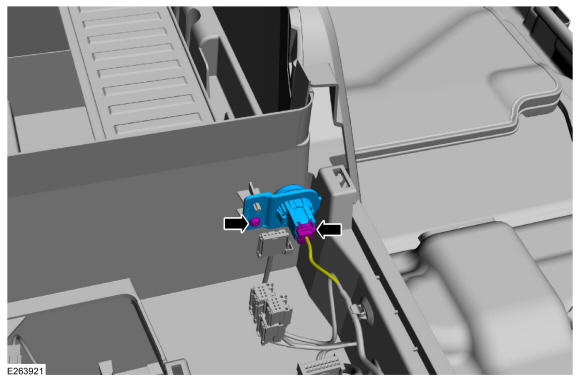

3. Disconnect the electrical connector, and remove the screw and the brake shift interlock override switch.

Courtesy of FORD MOTOR COMPANY
