Gear Shift Module (GSM): Removal

For information on Ford Color Coded Illustrations refer toOEM Color Coding

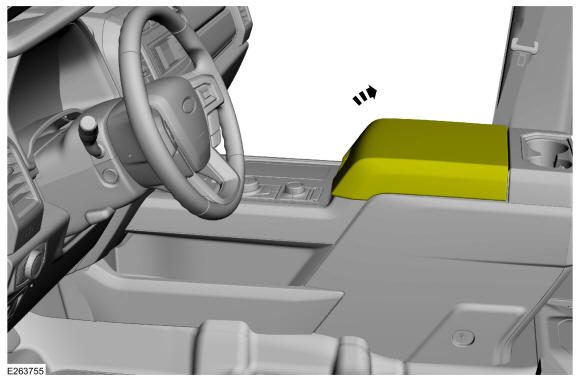

1. Open the console door.

   Courtesy of FORD MOTOR COMPANY

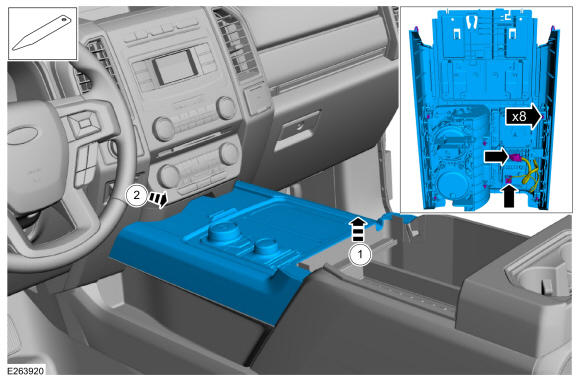

2. Detach the console cover, disconnect the electrical connectors and remove the console cover.

   Courtesy of FORD MOTOR COMPANY

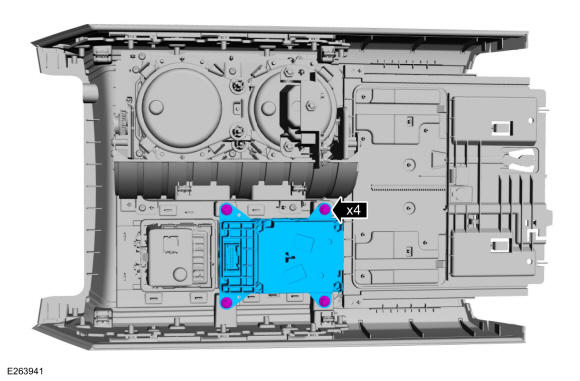

3. Remove the bolts and the GSM.

   Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
