Downshift Paddle Switch: Removal

For information on Ford Color Coded Illustrations refer toOEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

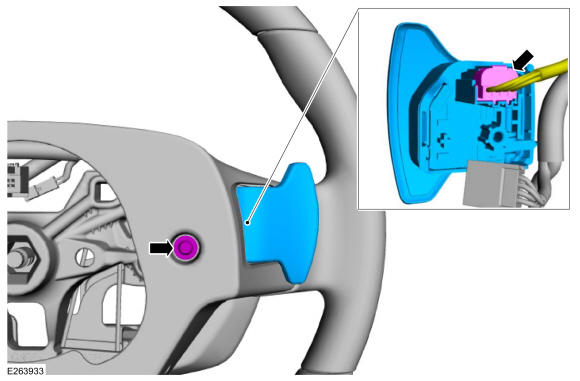

  1. Remove the screw, disconnect the electrical connector and remove the downshift paddle switch.
GFD293897Courtesy of FORD MOTOR COMPANY
