Transmission Control Switch (TCS): Removal

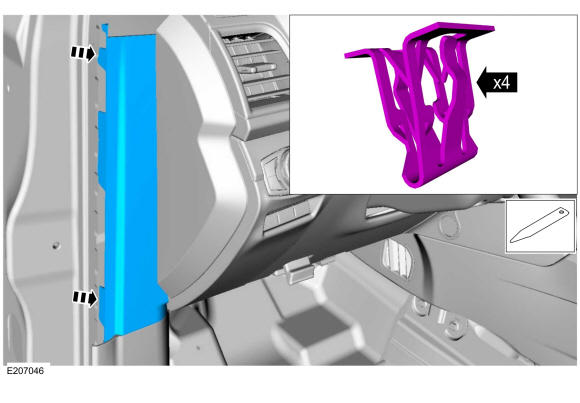

  1. Remove the LH cowl side trim panel. Use the General Equipment: Interior Trim Remover
    GFD333842Courtesy of FORD MOTOR COMPANY

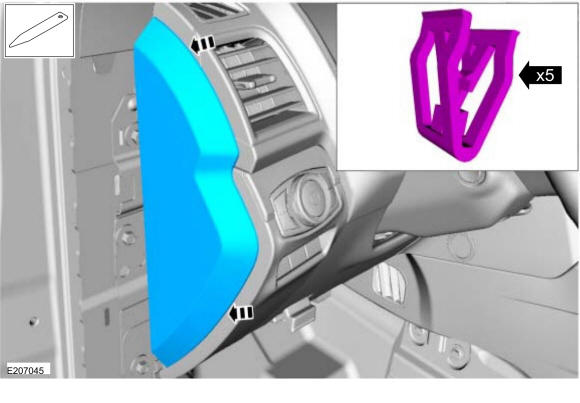

  2. Remove the LH instrument panel trim panel. Use the General Equipment: Interior Trim Remover
    GFD333843Courtesy of FORD MOTOR COMPANY

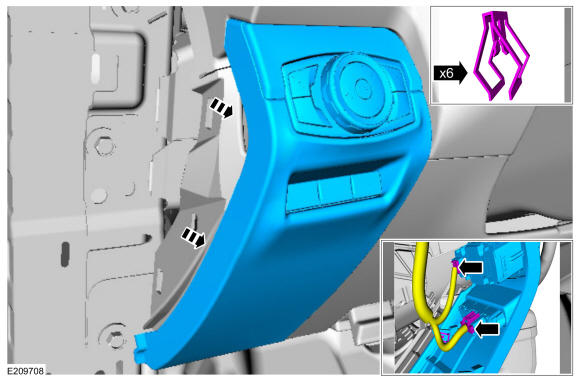

  3. Remove the LH instrument panel trim panel and disconnect the electrical connectors.
    GFD333844Courtesy of FORD MOTOR COMPANY

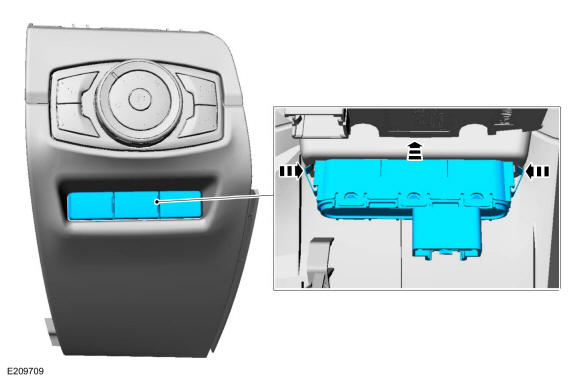

  4. Press the spring clips in and remove the TCS.
GFD333845Courtesy of FORD MOTOR COMPANY
