External Controls - Component Location: 6F35

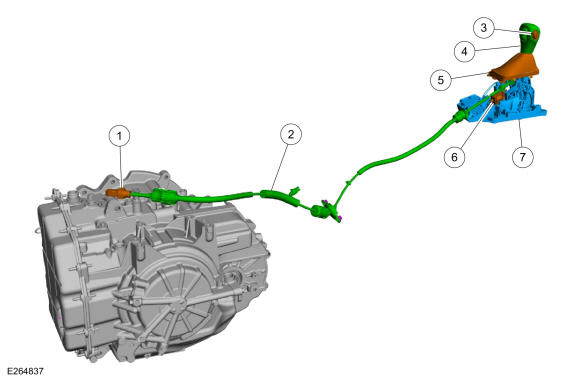

GFD333757Courtesy of FORD MOTOR COMPANY
Item Description
1 Selector lever cable adjuster
2 Selector lever cable
3 SelectShift® switch (if equipped)
4 Selector lever knob
5 Selector lever boot
6 Brake shift interlock actuator
7 Selector lever assembly
