In-Vehicle Temperature Sensor: Removal

WARNING: This page is about a different car, the 2017 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

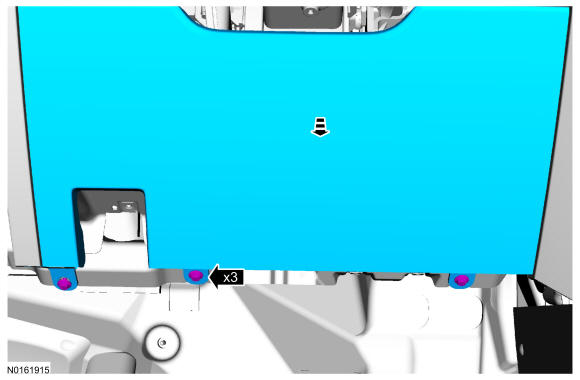

Remove the lower steering column cover screws and the lower steering column cover.
- Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

2.

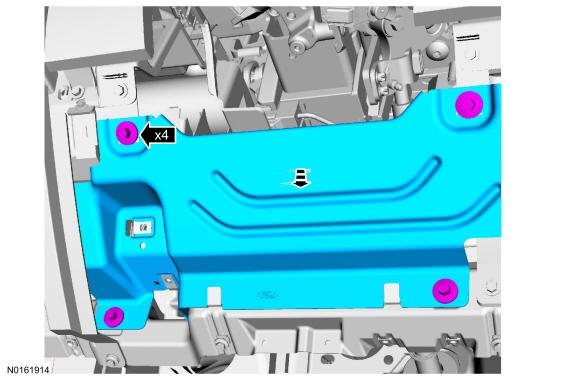

Remove the bolts and the steering column reinforcement panel.
- To install, tighten to 9 Nm (80 lb-in).

Courtesy of FORD MOTOR COMPANY

3.

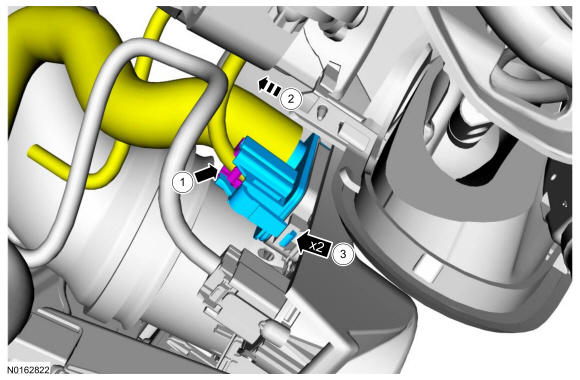

Remove the in-vehicle temperature sensor in the following sequence.
- 1.

  Disconnect the in-vehicle temperature sensor electrical connector.
- 2.

  Disconnect the aspirator hose.
- 3.

  Detach the in-vehicle temperature sensor from the instrument panel finish panel.

Courtesy of FORD MOTOR COMPANY
