In-Vehicle Temperature Sensor: Removal

WARNING: This page is about a different car, the 2017 Ford Expedition and 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the instrument cluster finish panel. Refer to Instrument Panel and Console .

2.

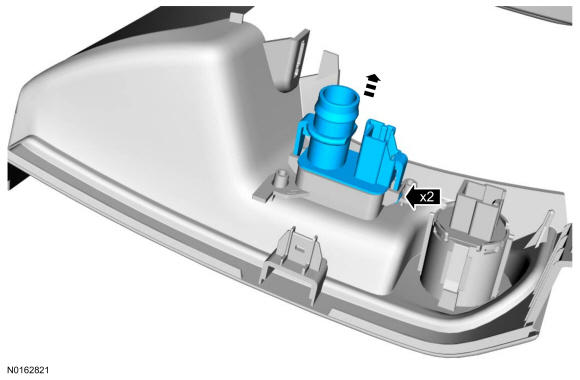

Remove the in-vehicle temperature sensor.

Courtesy of FORD MOTOR COMPANY
