Selector Lever Assembly: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
-

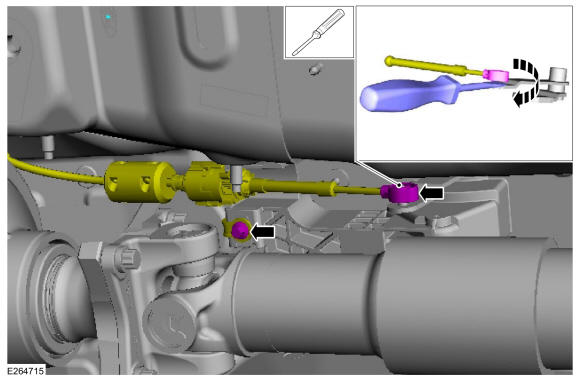

NOTE: Do not pull or pry on the selector lever cable or the selector lever cable end may be damaged. Use a screwdriver and turn the screwdriver as shown to pry the cable end off the post as close to the post as possible.

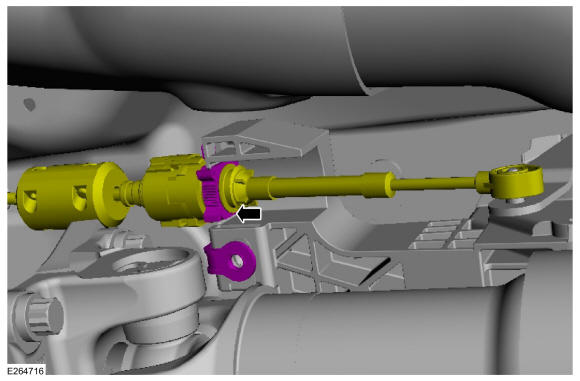

Using a screwdriver, pry the selector lever cable end from the selector lever and remove the selector lever cable retainer bolt.
Torque
: 62 lb.in (7 Nm)
- Disconnect the selector lever cable from the selector lever assembly.

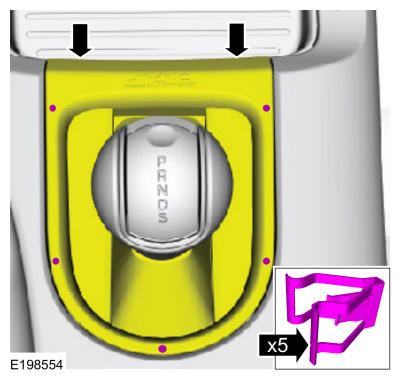

- Starting from the front corners, carefully pry up the bezel and position it out of the way.

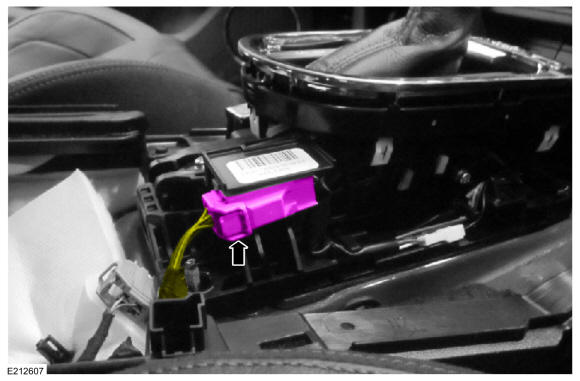

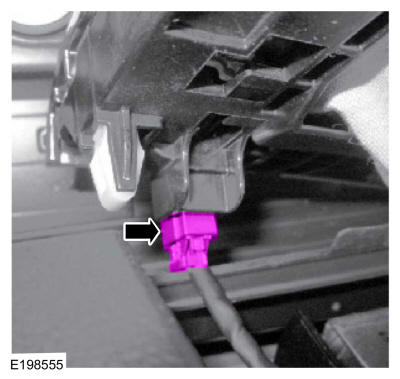

- Disconnect the electrical connector.

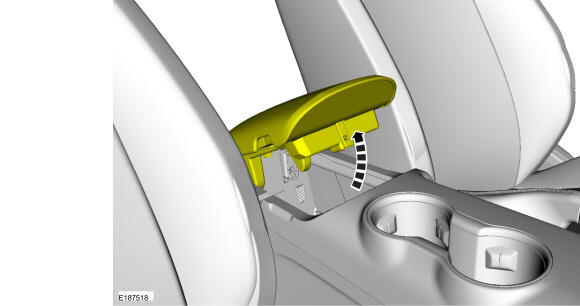

- Open the floor console lid.
-
NOTE: If necessary, position the seat rearward.

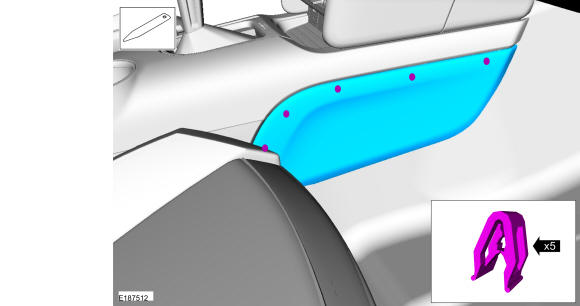

Release the clips and remove the floor console RH side trim panel. Use the General Equipment: Interior Trim Remover

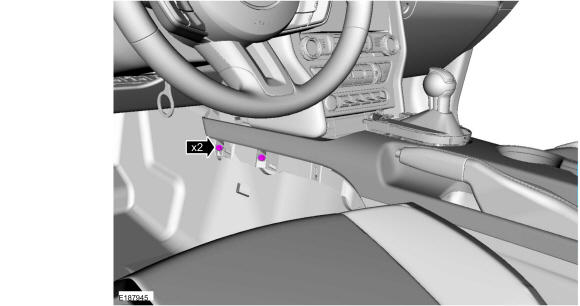

- Remove the RH side front screws.
-
NOTE: If necessary, position the seat rearward.

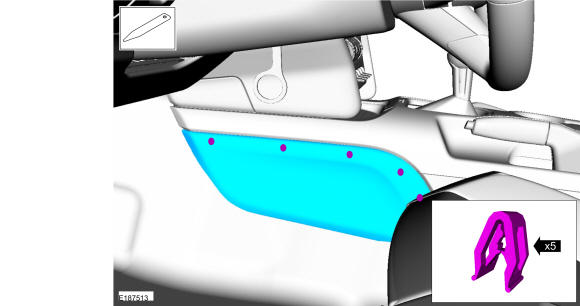

Release the clips and remove the LH side trim panel. Use the General Equipment: Interior Trim Remover

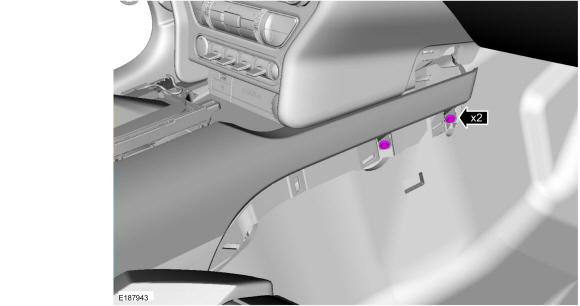

- Remove the LH side front screws.

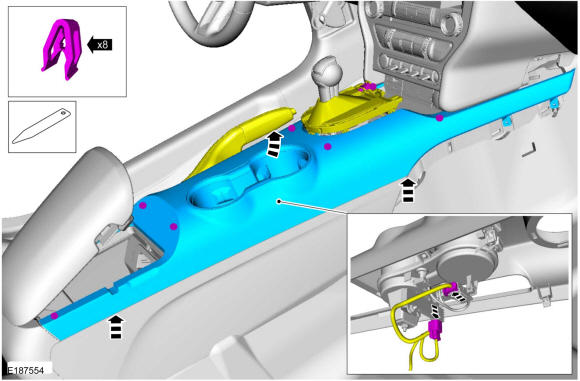

- Release the clips, position the selector lever bezel and boot aside and remove the floor console upper trim panel.
- Disconnect the electrical connectors. Use the General Equipment: Interior Trim Remover
- Disconnect the selector lever assembly electrical connector.

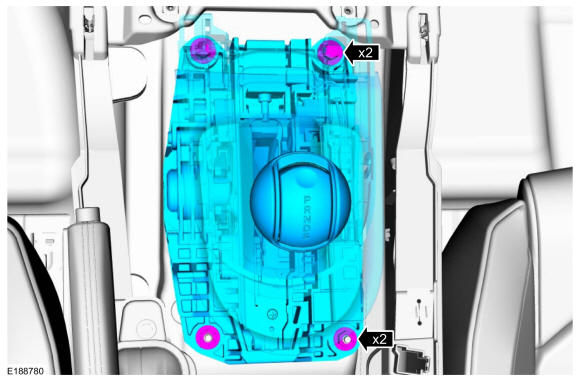

- Remove the bolts, the nuts and the selector lever assembly.
Torque
: 80 lb.in (9 Nm)
